Home >> Mercury >> 1983 >> Capri Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Adjustment >> Tune-Up - V6 >> Adjustments >> Distributor

Tune-Up - V6: Adjustments: Distributor

All models are equipped with Dura-Spark II ignition systems and no adjustments are required.

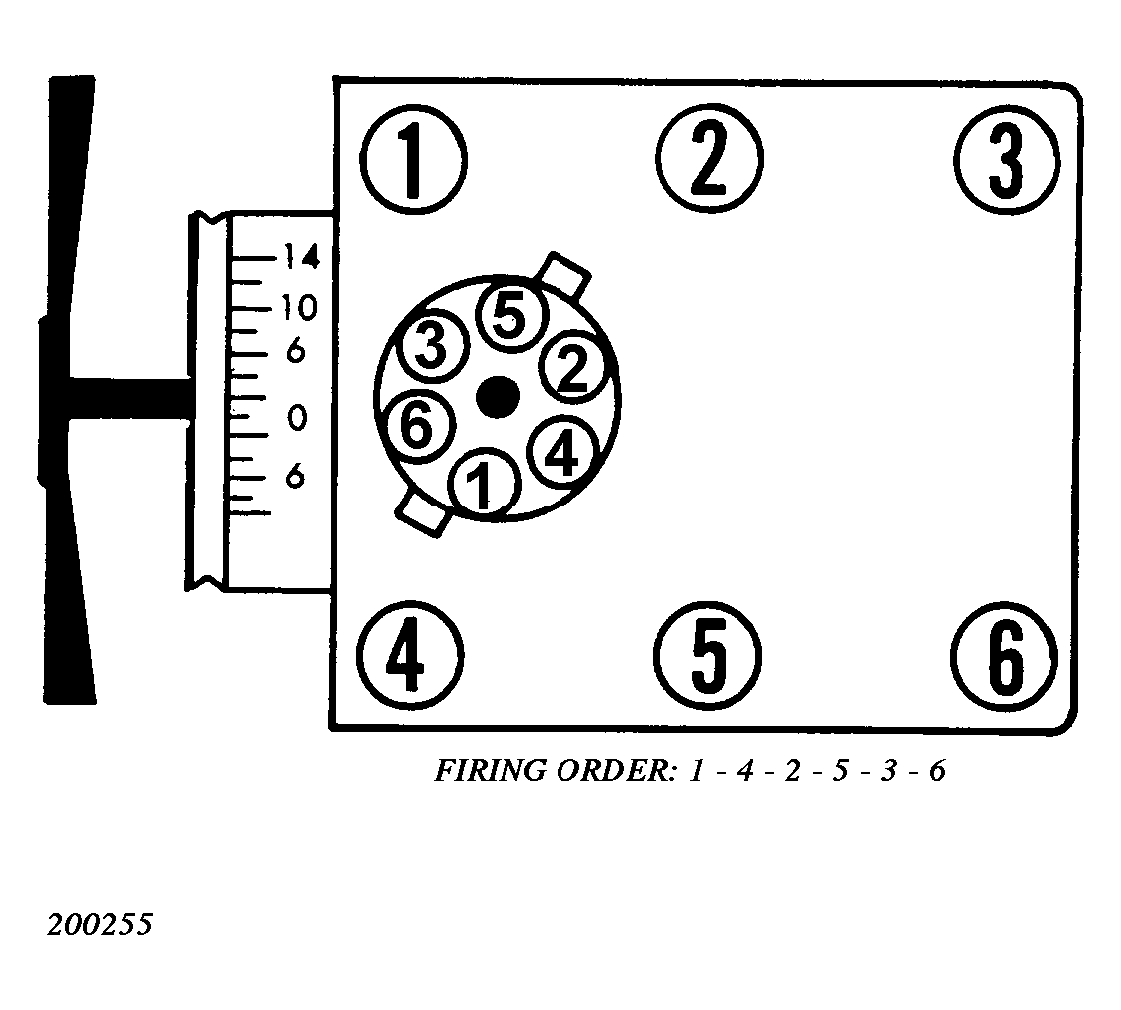

Fig 1: 3.8L Firing Order & Timing Marks

G200255
