Float Drop

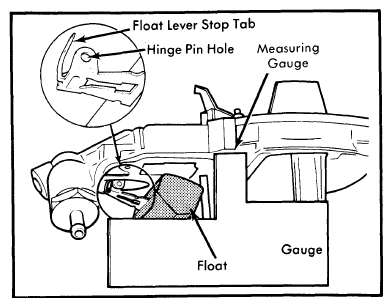

- With upper body and gasket removed, hold upper body upright and allow float to hang down. Construct a gauge (as shown in Fig 1) to specified float drop setting. Measure distance from casting surface of upper body to bottom of float.
- To adjust, bend float lever stop tab on float arm away from hinge pin to increase setting and toward hinge pin to decrease setting.
