Wiring Diagrams
>>
Engine Compartment
Engine Compartment

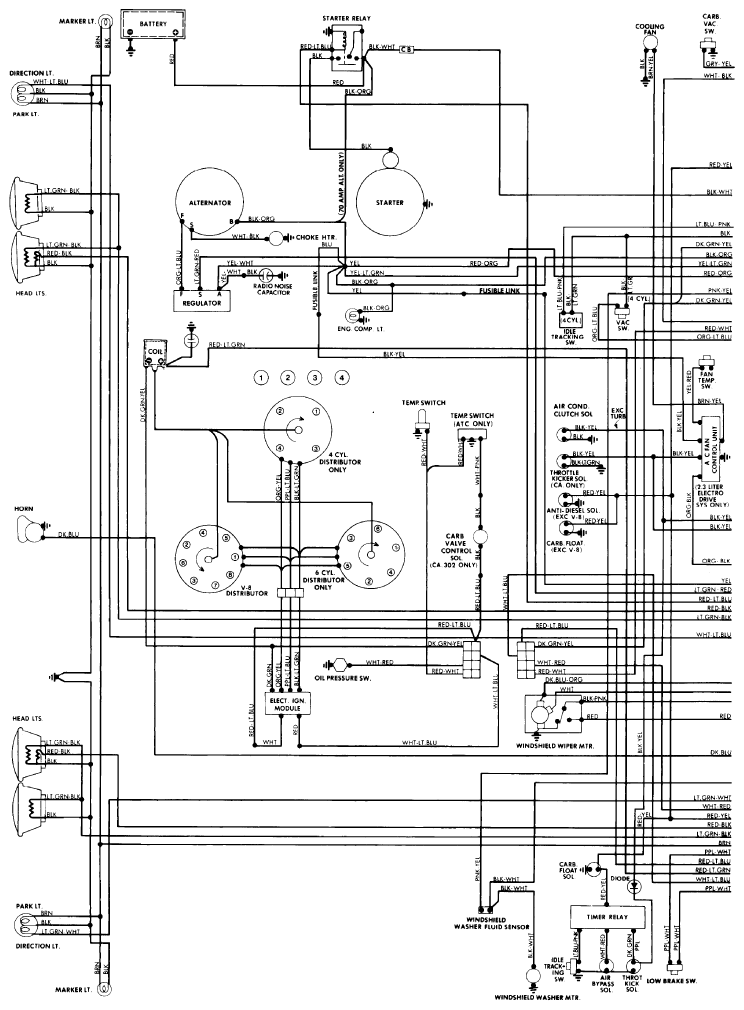

Fig 1: Wiring Diagrams - Engine Compartment
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
