Ford Motor Co.: Toe-In
- Loosen the 2 clamp bolts on each tie rod assembly Adjust toe If steering wheel spokes are in their normal position, lengthen or shorten both rods equally to obtain correct toe.

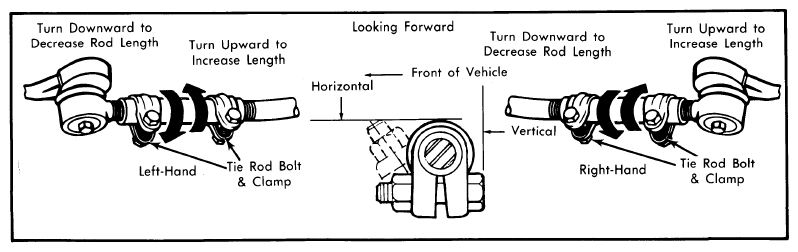

- When toe and steering wheel spoke position are both correct, lubricate clamp, bolts and nuts Tighten to specifications The 2 clamp bolts on each side of vehicle must be positioned within limits shown in Figure With threaded end of bolts toward front of vehicle.
