THERMACTOR Idle Vacuum Valve (TIV)

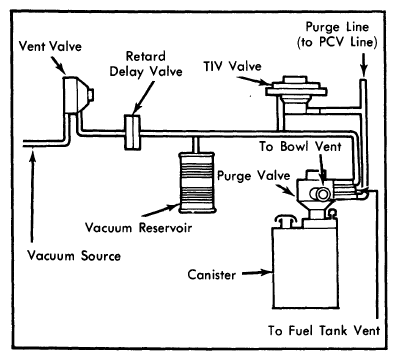

A thermactor idle vacuum vent valve (TIV) is used with some evaporative emission systems to improve idle quality at hot start. To overcome this poor idle condition, the TIV valve bleeds air into the PCV tube, leaning the idle fuel mixture until the purge valve opens. The same vacuum that opens the purge valve closes the TIV valve.
