Wiring Diagrams

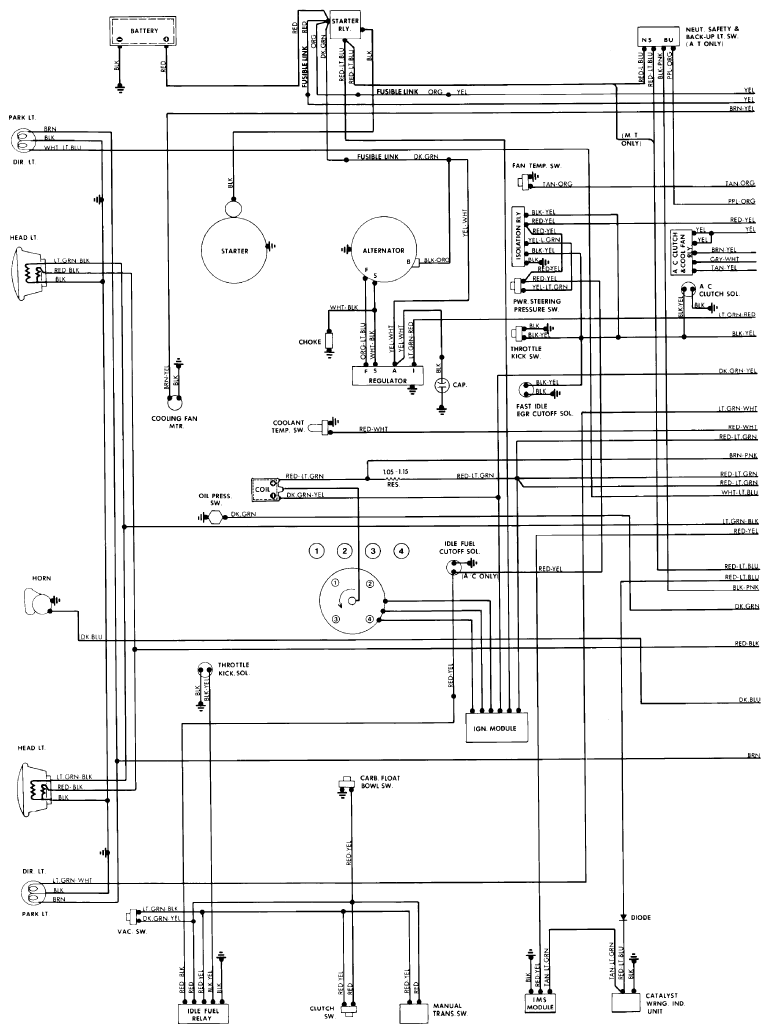

Fig 1: Wiring Diagram - Engine Compartment
G09308461Courtesy of FORD MOTOR CO.

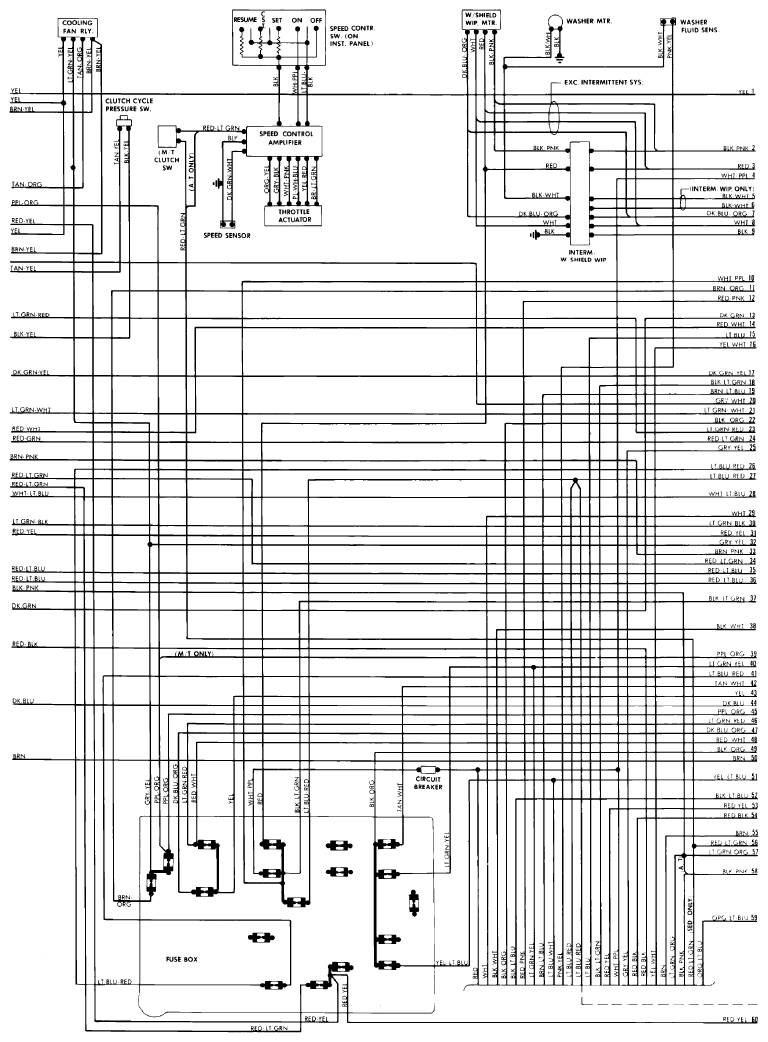

Fig 2: Wiring Diagram - Fuse Block & Underdash
G09308462Courtesy of FORD MOTOR CO.

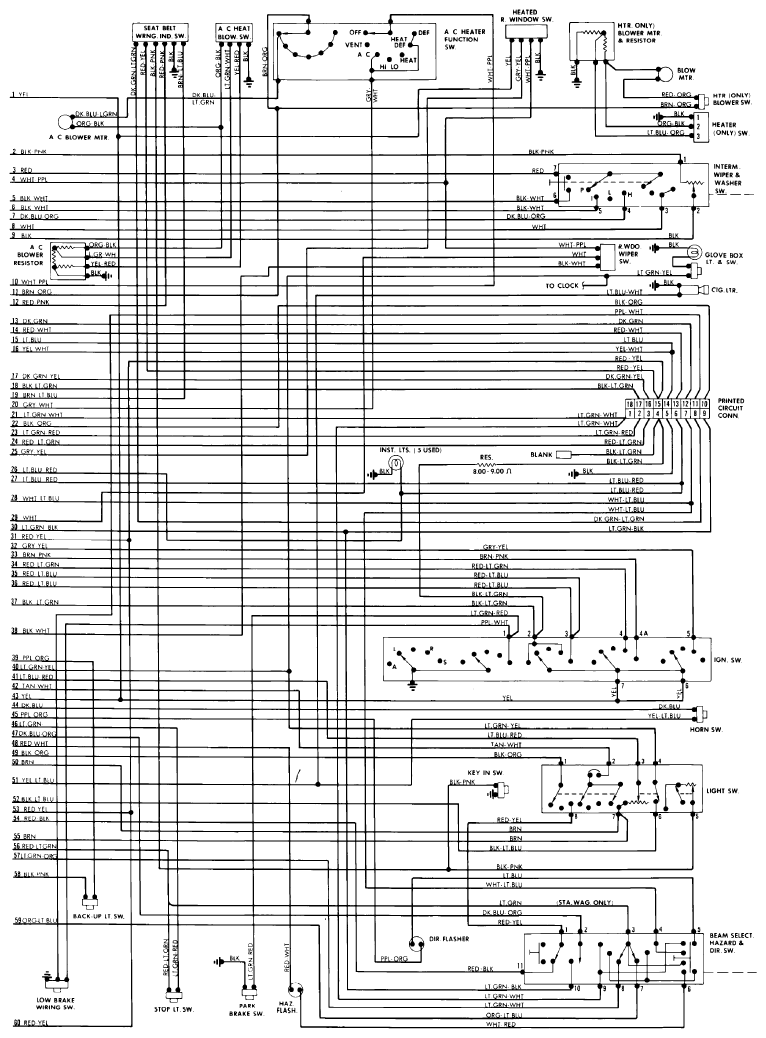

Fig 3: Wiring Diagram - Instrument Panel & Underdash
G09308463Courtesy of FORD MOTOR CO.

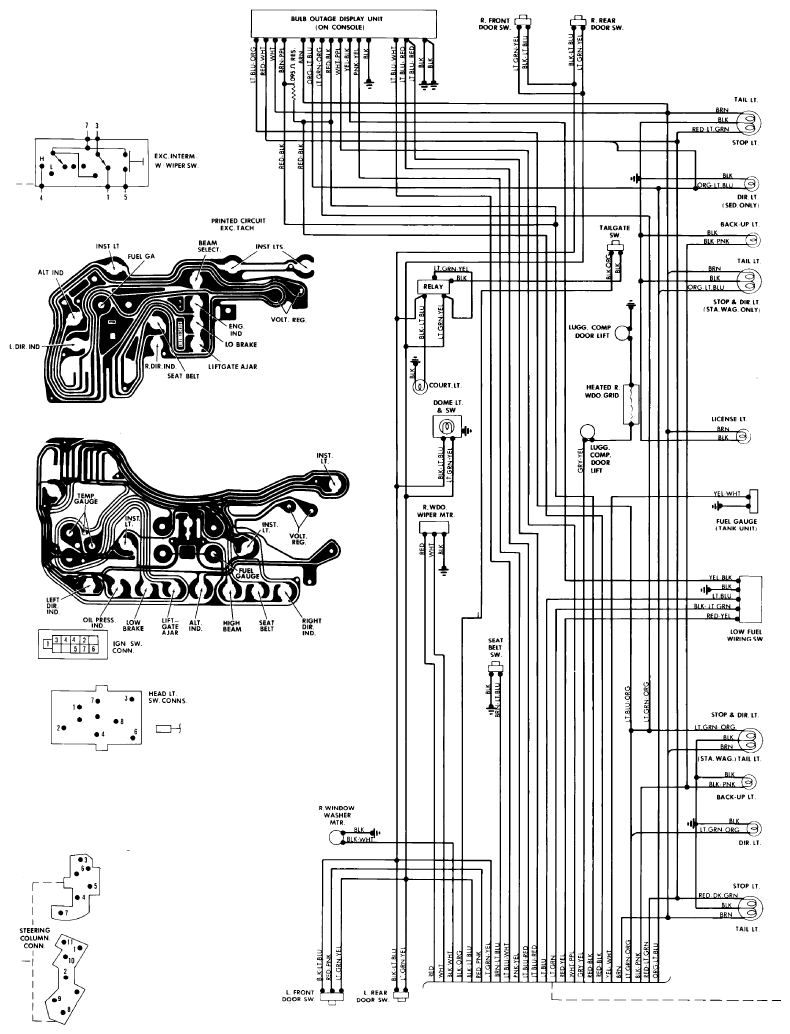

Fig 4: Wiring Diagram - Rear Compartment & Accessories
G09308464Courtesy of FORD MOTOR CO.
