Linkage Adjustment

Adjust bead chain to obtain 1/16"-1/14" actuator arm free travel when engine is at hot idle speed. On vehicles with idle stop solenoids, perform this adjustment with ignition switch in the "ON" position.

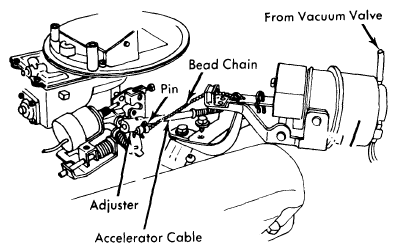

Fig 1: Engine Compartment Speed Control Components for Granada and Monarch V8 (Thunderbird, LTD II, and Cougar with 302" Engine is Similar)

Courtesy of FORD MOTOR CO.

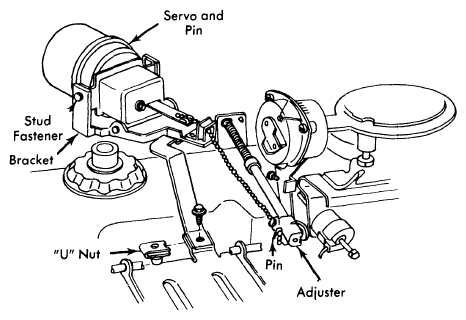

Fig 2: Engine Compartment Speed Control Components for Continental Mark V (Lincoln Continental is Similar)

Courtesy of FORD MOTOR CO.

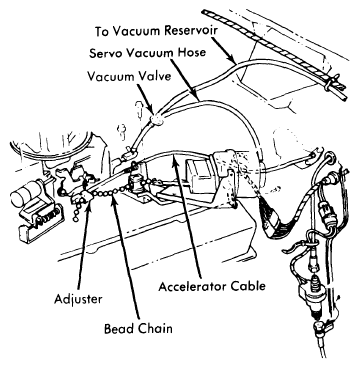

Fig 3: Engine Compartment Speed Control Components for Granada and Monarch Six Cylinder Engine

Courtesy of FORD MOTOR CO.
