Hydraulic System Control Valves: Servicing

All hydraulic system switches and valves are non-adjustable and non-serviceable. If any part of valve is found to be defective, entire unit must be replaced.

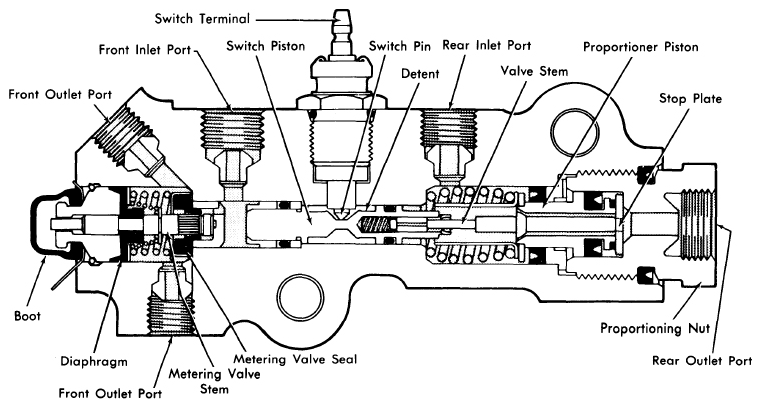

Fig 1: Cross Sectional View Of Typical Combination Valve
G09346853Courtesy of NOT AVAILABLE
