Linkage Adjustment

Adjust bead chain to obtain 0.06 - 0.25" actuator arm free travel when engine is at hot idle. On vehicles equipped with solenoid anti-diesel valve, perform this adjustment with ignition switch in "ON" position.

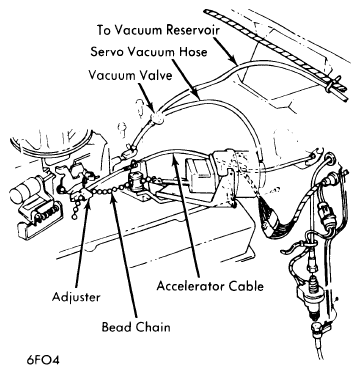

Fig 1: SPEED CONTROL SENSOR & SERVO (GRANADA & MONARCH - V8 SHOWN)

Courtesy of FORD MOTOR CO.

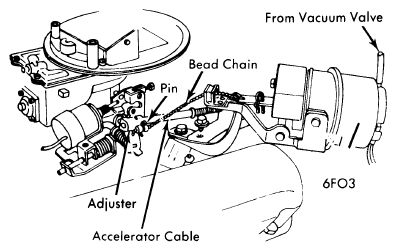

Fig 2: SPEED CONTROL SENSOR & SERVO (THUNDERBIRD, LINCOLN, & MARK IV)

Courtesy of FORD MOTOR CO.
