Steering Column: Assembly

Install new upper bearing and assemble new lower support bearing on shaft. Replace column lock and turn key to "IGN" position, then back to "OFF" (to ensure lock pin does not protrude into column). Insert shaft from lower end.

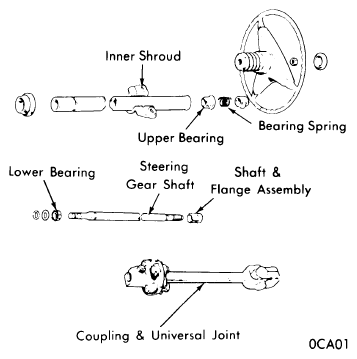

Fig 1: Capri Steering Column Assembly

Courtesy of FORD MOTOR CO.
