Wiring Diagram Symbols

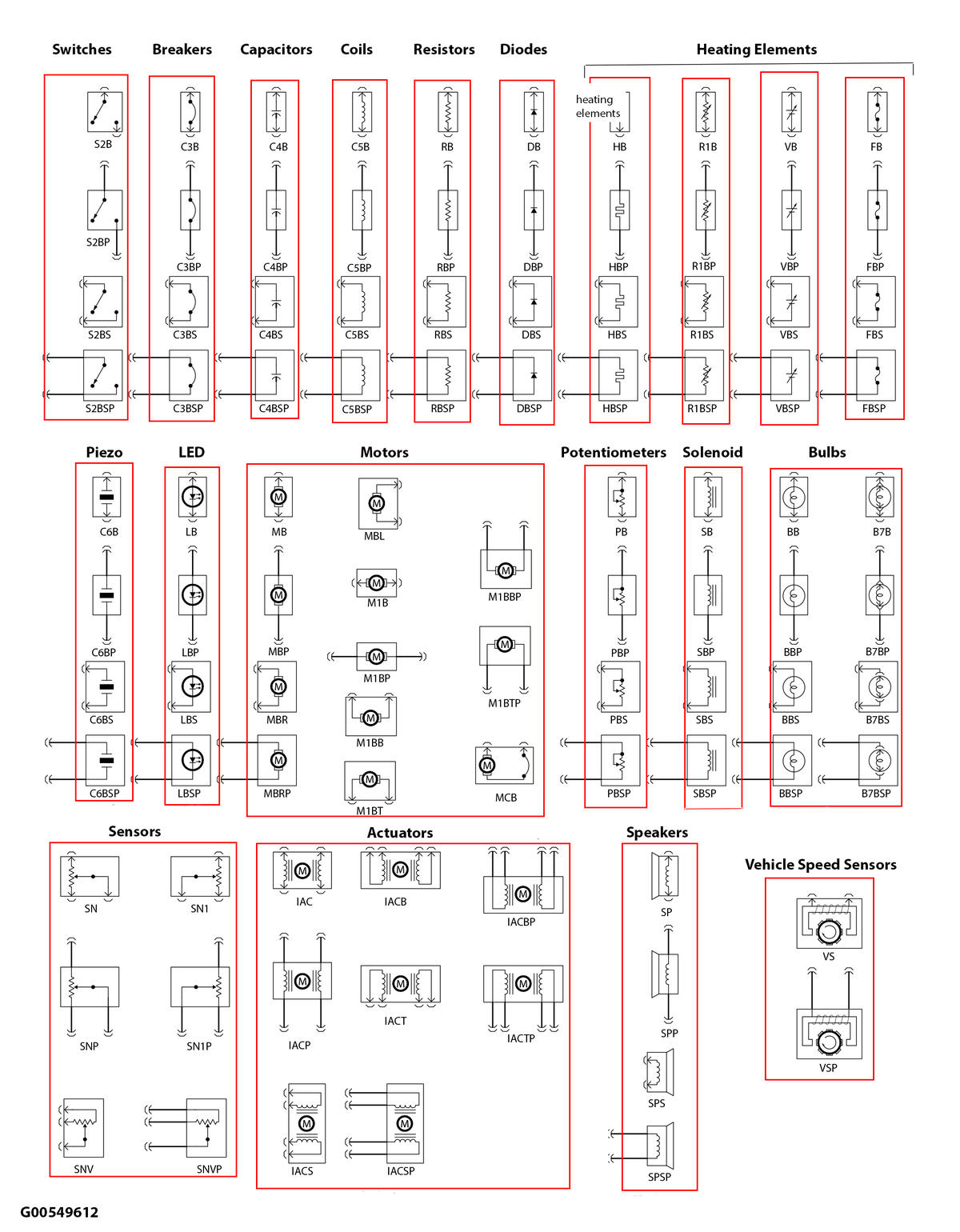

Fig 1: Wiring Diagram Symbols (1 of 2)

G00549612

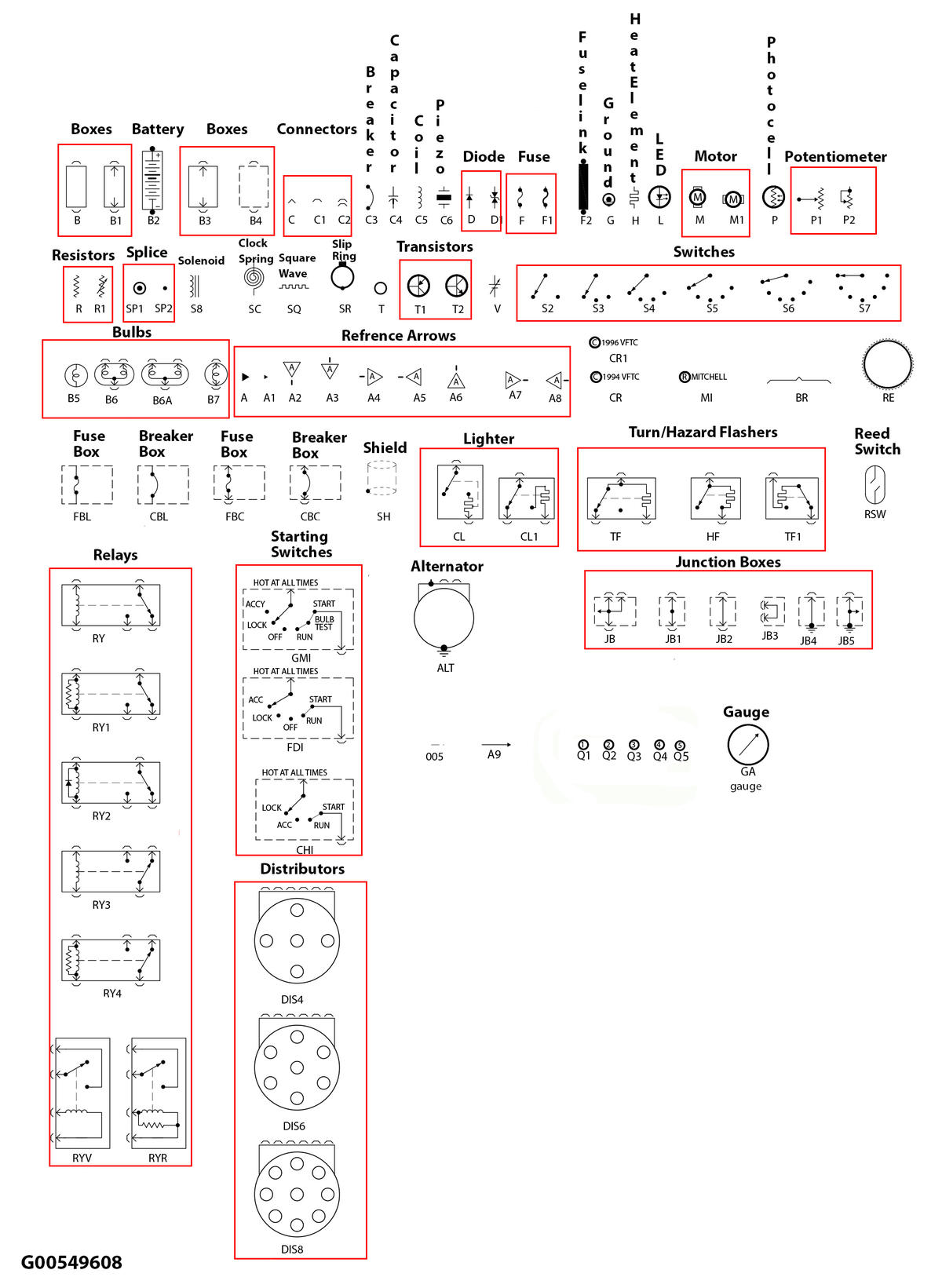

Fig 2: Wiring Diagram Symbols (2 of 2)

G00549608
