Test Alternator Charging Current - AR15.40-P-5011SVZ
Engine 279 in model 223

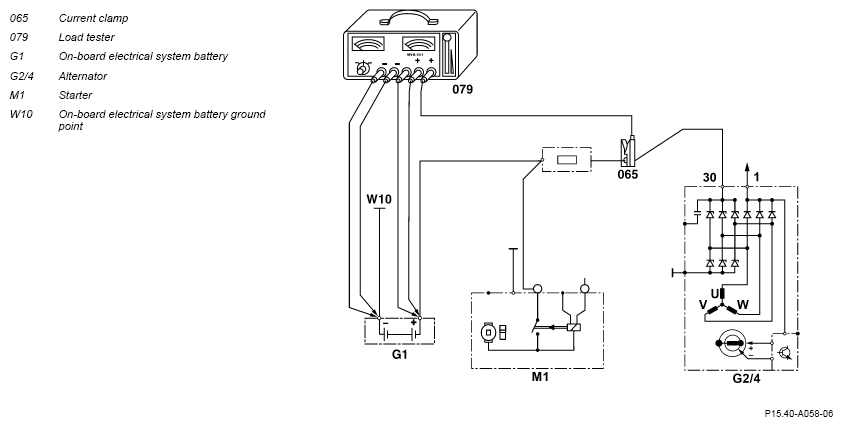

Connection scheme
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Check | |||
| 1 | Implement preconditions for alternator test. | If required. | AR15.40-P-5009SVZ |
| 2 | Connect load tester (079) with current clamp (065) in accordance with connection scheme. | ||
| 000 588 31 19 00 Load tester | WS15.00-P-0077B | ||
| 3 | Start engine. | ||
| 4 | Check charging current at increased engine rpm; in this connection, load on-board electrical system battery (G1) using load tester (079). | In this connection, take into account charging voltage. If charging current falls below specified value: ↓ Check diodes of alternator (G2/4) and/or replace alternator (G2/4). |
*BE15.40-P-1001-01L |
| Test alternator diodes | AR15.40-P-9301-02SVZ | ||
| Remove/install alternator | AR15.40-P-5032SVZ | ||
| 5 | Switch off engine. | ||
| 6 | Disconnect load tester (079) and current clamp (065). |
CHECK VALUES FOR ALTERNATOR
| Number | Designation | Engine 279 in model 217, 222, 223 | ||
|---|---|---|---|---|
| BE15.40-P-1001-01L | Charging current for alternator | max. | A | 250 |
| min. | A | 190 | ||
| Engine speed | 1/min | 2200 | ||
| Ratio | i= | 2, 76 | ||
