Work Description For Field Measure (P-SC-2024080003)
Publication date: 2024-08-01Reference number: P-SC-2024080003
WORK DESCRIPTION FOR FIELD MEASURE
SERVICE CAMPAIGN BULLETIN
Reference Number(s): P-SC-2024080003, Date of Issue:
August 01, 2024
| MERCEDES-BENZ: | Model 236 |
WORK PROCEDURE

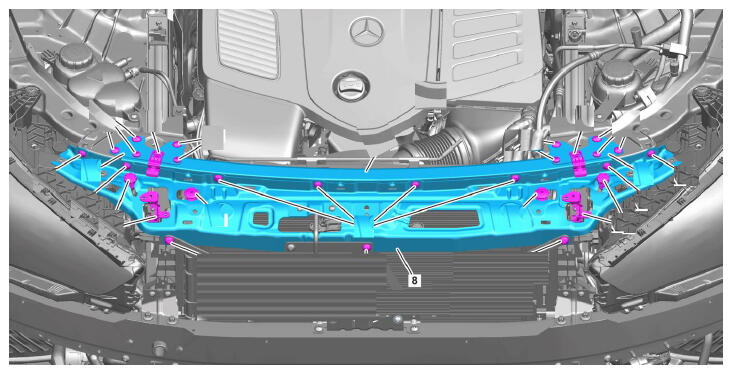

- Replace reinforcement sheet metal for radiator crossmember (8).
For basic information, see AR62.30-P-2300WEB.
PARTS
PARTS INFORMATION
| Quantity | Designation | Part no. | ||
|---|---|---|---|---|
| 1(1) | Reinforcement sheet metal for radiator crossmember | A 236 620 18 00 | ||
|
||||
Small parts such as screws, lock nuts, sealing rings, cable ties, fluids, sealant, etc. are not listed in the parts list. The required small parts are taken into account in the budgeting.
OPERATION TEXT AND FLAT RATE
OPERATION TEXT AND FLAT RATE
| Operation no. | Operation text | Flat rate | Accounting no./damage code |
|---|---|---|---|
| 12-2193 | Operations: Replace reinforcement sheet metal for radiator crossmember Includes: Disconnect/connect ground line of 12 V on-board electrical system battery, remove/install front bumper |
2.0 h | 20 950 02 |
| 12-2194 | Operations: Extra work for: Replace reinforcement sheet metal for radiator crossmember in vehicles with PARKTRONIC system (code 235). | 0.1 h | 20 950 02 |
| 12-2195 | Operations: Extra work for: Replace reinforcement sheet metal for radiator crossmember in vehicles with 360-degree camera (code 501). | 0.1 h | 20 950 02 |
| 12-2196 | Operations: Extra work for: Replace reinforcement sheet metal for radiator crossmember in vehicles with Pedestrian protection (code U60). | 0.3 h | 20 950 02 |
| 12-2201 | Operations: Extra work for: Replace reinforcement sheet metal for radiator crossmember in vehicles with DISTRONIC PRO (code 239). | 0.2 h | 20 950 02 |
