Remove/Install Intelligent Servo Module - Ar27.19-D-0550TS
Model 907 with transmission 722.9
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | ||
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Shift automatic transmission to position "N". | ||
| 2 | Release parking brake. | ||
| 3 | Detach ground line of on-board electrical system battery. | AR54.10-D-0029TS | |
| 4 | Raise vehicle. | AR00.60-D-1000-04TS | |
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||
| 5 | Remove underfloor paneling at left. | If installed. | AR61.30-D-1001TS |

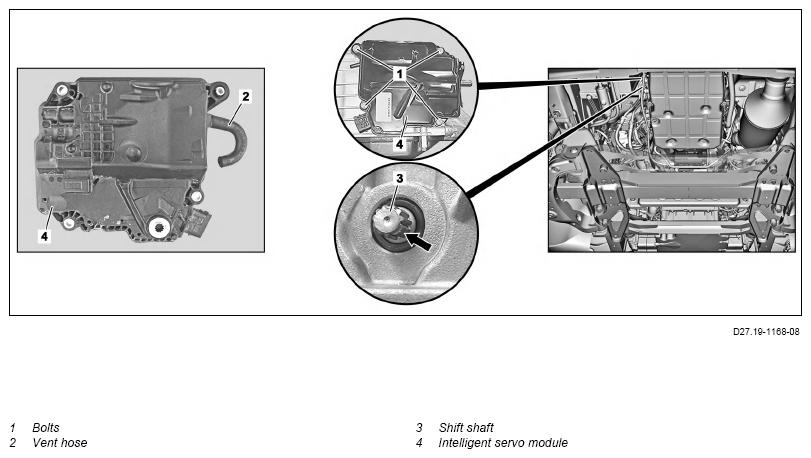

| 6 | Disconnect electrical connector from intelligen servo module (4). | ||
| 7 | Remove screw/bolts (1). | ||
| 8 | Remove intelligent servo module (4) with vent hose (2). | ||
| 9 | Turn gearshift shaft (3) of automatic transmission counterclockwise all the way to position "D" (arrow). | If the intelligent servo module (4) is replaced. | |
| Fig 1 | |||
| Check | |||
| 10 | Check the gearshift shaft radial shaft sealing ring (3). | If the gearshift shaft radial shaft sealing ring (3) is damaged or leaky, replace the gearshift shaft radial shaft sealing ring (3). Remove/install radial shaft sealing ring of gearshift shaft |
AR27.40-D-0221TSR |
| Install | |||
| 11 | Install intelligent servo module (4) with vent hose (2). | ||
| 12 | Screw in screws/bolts (1). | *BA27.40-N-1014-01I | |
| 13 | Connect electrical connector of intelligent servo module (4). | ||
| 14 | Install underfloor paneling at left. | If installed. | AR61.30-D-1001TS |
| 15 | Lower vehicle. | AR00.60-D-1000-04TS | |
| 16 | Attach ground line of on-board electrical system battery. | AR54.10-D-0029TS | |
| 17 |
Read out fault memory using vehicle diagnosis system and commission the intelligent servo module (4). | If the intelligent servo module (4) is replaced. If corresponding findings are present Erase the fault memory. |
AD00.00-D-2000-06TS |
| Number | Designation | Transmission 722.9 | ||
|---|---|---|---|---|
| BA27.40-N-1014-01I | Standard bolt/hexagon-spacer bolt, shift module (ISM) to transmission housing | Stage 1 | Nm | 4 |
| Stage 2 | ∠° | 90 | ||
