Service Campaign 2024060004 - Perform SCN Coding In Multiple Control Units (P-SC-2024060004)

SERVICE CAMPAIGN 2024060004 - PERFORM SCN CODING IN MULTIPLE CONTROL UNITS

SERVICE CAMPAIGN BULLETIN

SERVICE INFORMATION

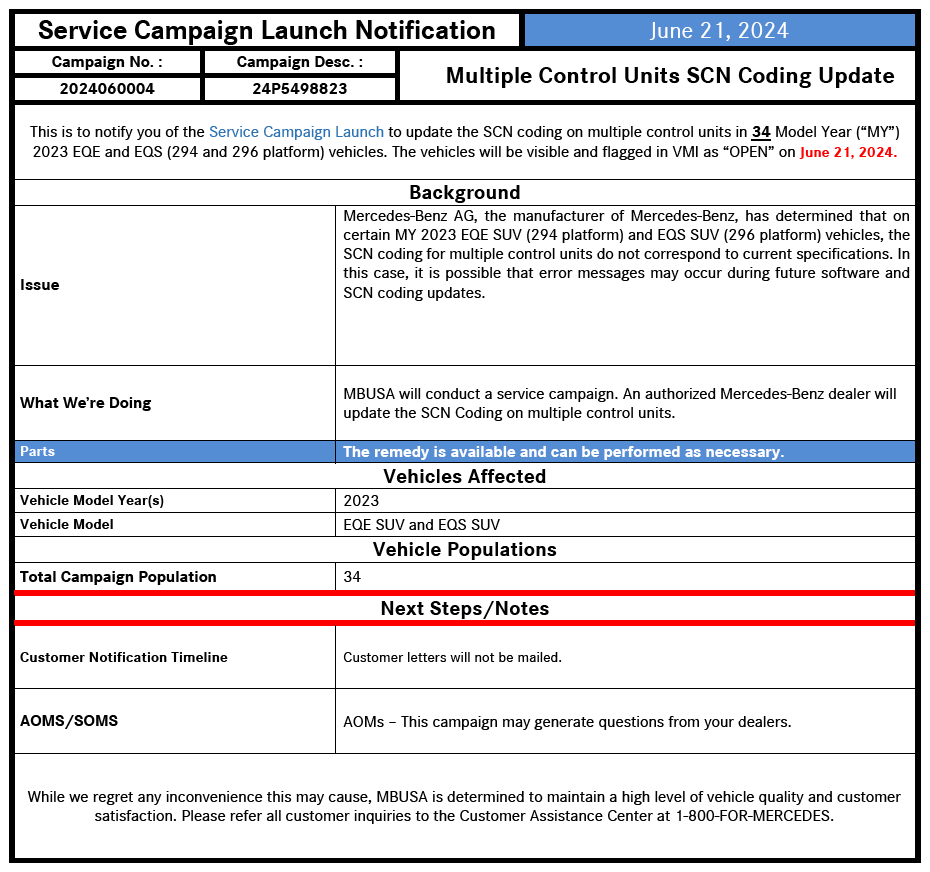

IMPORTANT SERVICE CAMPAIGN LAUNCH

Please note that all customer inquiries should be directed to the Customer Assistance Center at 1-800-FOR-MERCEDES (1-800-367-6372).

Sincerely,

Gregory Gunther

Senior Manager, Vehicle Compliance & Analysis

June 2024

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT

Model EQE and EQS (294 and 296 platform)

Model Year 2023

Mercedes-Benz AG, the manufacturer of Mercedes-Benz vehicles, has determined that on certain MY 2023 EQE (294 platform) and EQS (296 platform) vehicles, the SCN coding of multiple control units does not correspond to current specifications. In this case, it is possible that error messages may occur during future software and SCN coding updates. An authorized Mercedes-Benz dealer will update the SCN coding for the control units in the affected vehicles.

Prior to performing this Campaign:

• VMI must be checked before performing campaigns to verify that the campaign is required on a specific vehicle. Always check for any other open campaigns and perform accordingly.
• Please review the entire Campaign bulletin and follow the repair procedure exactly as described.

Approximately 34 vehicles are affected.

Order No. P-SC-2024060004

• Always use the latest  XENTRY Diagnosis software release with all available add-ons.
• Follow the operation steps exactly as described in XENTRY Diagnosis.
• Use a charger to ensure sufficient power supply to the vehicle's on-board electrical system battery  (greater than 12.5 V).
• If XENTRY Diagnosis is already connected to the vehicle, start with Work Procedure Step   2 .

  If two or more software updates or SCN codings are performed during a single workshop visit, operation items 02-4762 and 02-5058  may be invoiced only on one of the workshop orders.

WORK PROCEDURE

1. Connect XENTRY Diagnosis.
2. Perform SCN coding in the Electronic ignition lock (EZS) (N73/3)  control unit.

   To do this, select menu item "Quick test view → N73/3 - Electronic ignition lock (EZS)  → Adaptations → Control unit update → Updating of SCN coding".

   Then follow the user guidance in XENTRY Diagnosis.

3. Perform SCN coding in the Mobile device connection (MDC) (N183)  control unit.

   To do this, select menu item "Quick test view → N183 - Mobile device connection (MDC)  → Adaptations → Control unit update → Updating of SCN coding".

   Then follow the user guidance in XENTRY Diagnosis.

4. Perform SCN coding in the MBUX multimedia system (head unit) (A26/17)  control unit.

   To do this, select menu item "Quick test view → A26/17 - MBUX multimedia system (head unit)  → Adaptations → Control unit update → Updating of SCN coding".

   Then follow the user guidance in XENTRY Diagnosis.

5. Perform SCN coding in the Instrument cluster (IC) (N133/1)  control unit.

   To do so, select menu item "Quick test view → N133/1 Instrument cluster (IC)  → Adaptations → Control unit update → Updating of SCN coding".

   Then follow the user guidance in XENTRY Diagnosis.

6. Disconnect XENTRY Diagnosis.

WARRANTY INFORMATION

Damage Code	Operation Number	Description	Labor Time (hrs.)
54 988 23	02-9446 (2)	Operations: Perform SCN coding in the Electronic ignition lock (EZS) (N73/3)  control unit (with XENTRY Diagnosis connected)	0.1
	02-9446 (2)	Operations: Perform SCN coding in the Mobile device connection (MDC) (N183)  control unit (with XENTRY Diagnosis connected)	0.1
	02-9446 (2)	Operations: Perform SCN coding in the MBUX multimedia system (head unit) (A26/17)  control unit (with XENTRY Diagnosis connected)	0.1
	02-9446 (2)	Operations: Perform SCN coding in the Instrument cluster (IC) (N133/1)  control unit (with XENTRY Diagnosis connected)	0.1
	02-4762 (1)	Operations: Connect/disconnect diagnostic system (XENTRY Diagnosis)	0.1
	02-5058 (1)	Operations: Connect/disconnect starter battery charger (with XENTRY Diagnosis connected)	0.1
(1) Invoice operation item only once for each workshop order.  (2) Please enter the code and accounting number manually in the workshop order as per the work instructions.
