Remove/Install Window Frame - AR67.30-P-1000GW

Model 463 (except 463.342) as of model year 2013 up to model year 2019

Fig 1: Identifying Adapter (000 589 86 00)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove side window of front door	Model 463 (except 463.202/242/342) as of model year 2013 up to model year 2019	AR67.30-P-2305GW

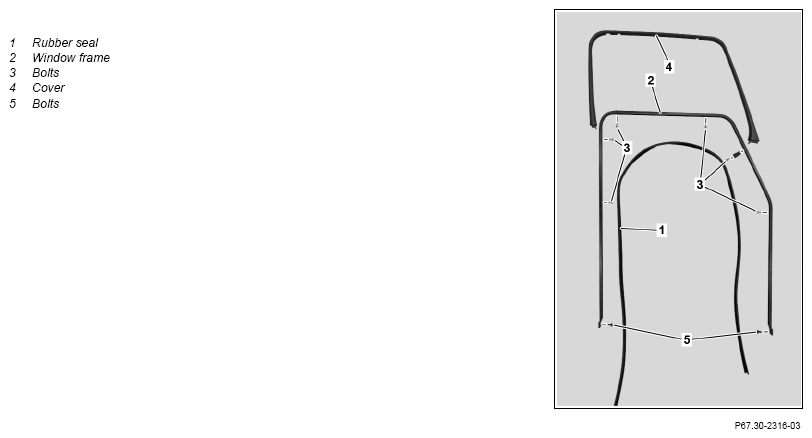

2	Remove rubber seal (1) from window frame (2)
3	Remove upper screws (3) at window frame (2)
4	Remove trim (4)	Install trim (4) before securing window frame (2).
5	Remove lower screws (5) at window frame (2)
6	Remove window frame (2) upwards from front door	Check sealing tape on door frame, replace if required. Otherwise moisture can penetrate into the passenger compartment.
7	Install in the reverse order
8	Check side window for ease of movement	For this purpose, open and close side window several times.
