Parking Aid Sensor: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

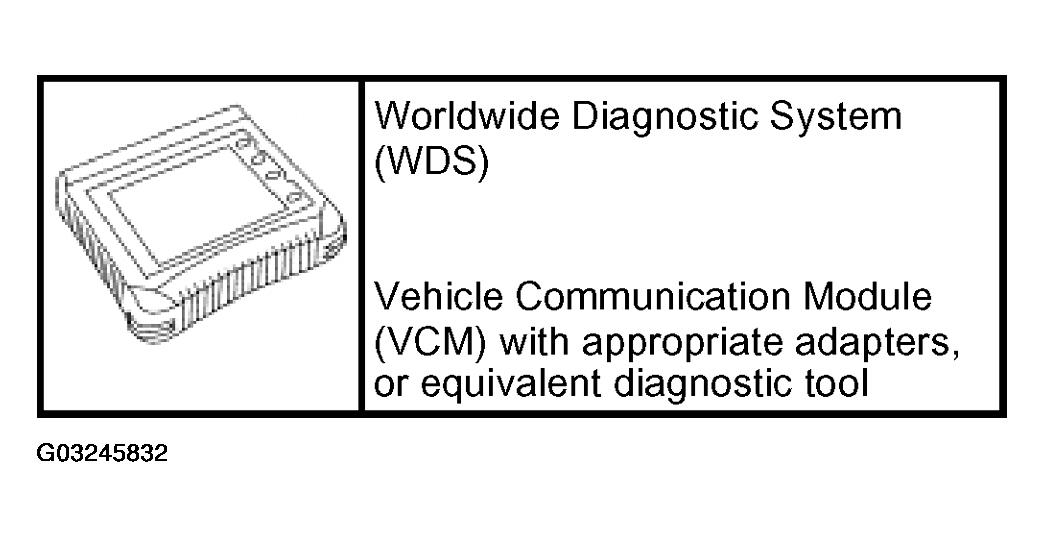

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

Remove the front or rear bumper cover. For additional information, refer to BODY SYSTEM - EXTERIOR .

NOTE: Rear parking aid sensor shown, front parking aid sensor similar.

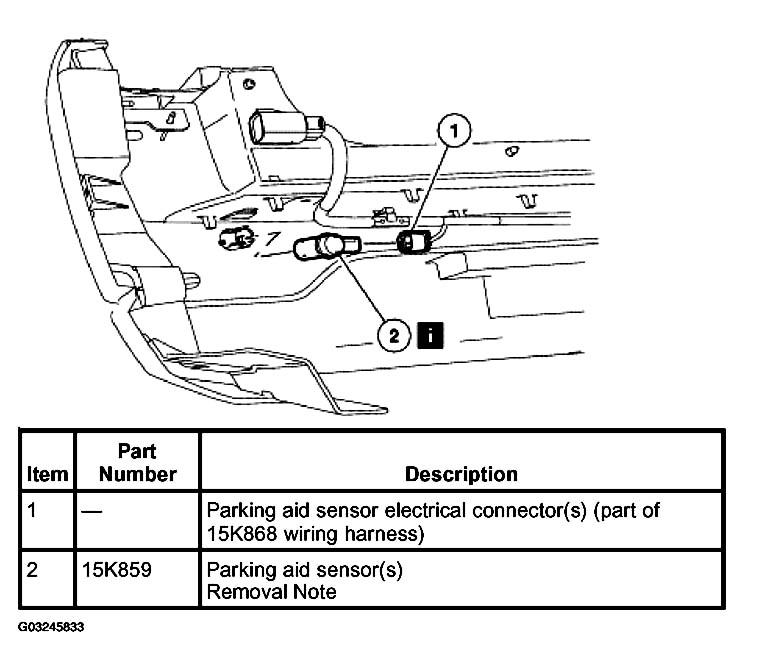

Fig 2: Parking Aid Sensor Removal Sequence

Courtesy of FORD MOTOR CO.

Remove the parts in the order indicated in the following illustration and table.
To install, reverse the removal procedure.

For Monterey, paint the sensor(s) with one coat of paint (basecoat and clear coat).
Using the diagnostic tool, verify that the parking aid sensor PIDs read no object present, and that the parking aid sensor attenuation PIDs read between 0.8-1.6 ms. If the parking aid sensor attenuation PIDs do not read between 0.8-1.6 ms, the paint is too thick on the sensor (s) and it will be necessary to repaint the sensor(s) as required.
