Disassemble/Assemble Outside Mirror - Ar88.70-D-9030TSS

Model 907

with code FS1 (Mirror support, extended)

Model 907

with code FS2 (Extra-long mirror bracket)

	Disassemble/assemble

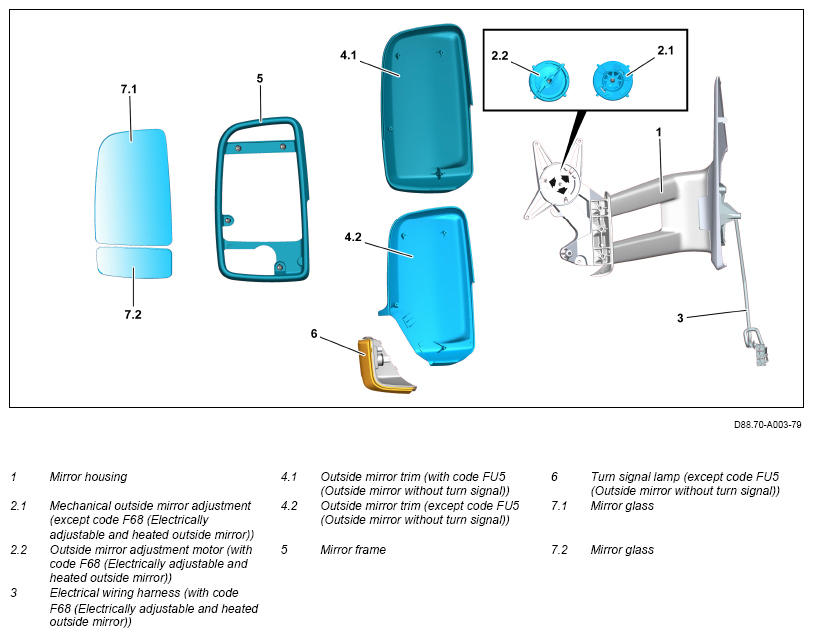

1	Remove left and right outside mirror.		AR88.70-D-9000TS
2	Remove upper mirror glass (7.1) and lower mirror glass (7.2).		AR88.70-D-9020TS
3.1	Remove screw, unclip mechanical outside mirror adjustment (2.1) and remove.	Model 907 except code F68 (Electrically adjustable and heated outside mirror)
3.2	Remove outside mirror adjustment motor (2.2).	Model 907 with code F68 (Electrically adjustable and heated outside mirror)	AR88.79-D-3475TS
4	Remove mirror frame (5) and outside mirror trim (4.1 or 4.2).		AR88.70-D-9040TSS
5	Unclip electrical wiring harness (3) and guide out of mirror housing (1).	Model 907 with code F68 (Electrically adjustable and heated outside mirror)
6	Assemble in the reverse order.
