Disassemble/Assemble Outside Mirror - Ar88.70-D-9030TS

Model 907

except code FS1 (Mirror support, extended)

except code FS2 (Extra-long mirror bracket)

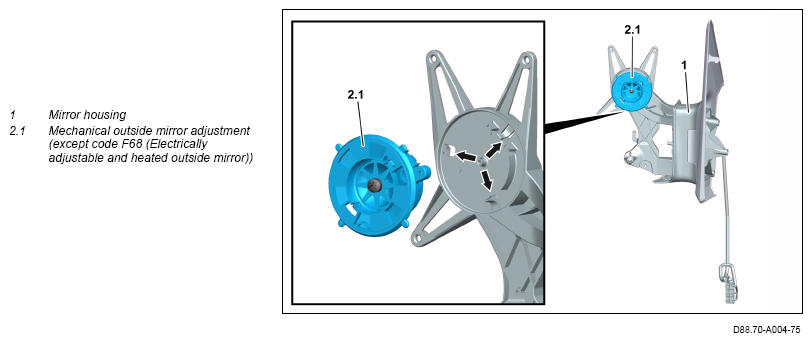

Shown with code XL4 (Weight variant 5, 500 kg) with code ZU7 (Canada national version) or code ZU8 (USA national version)

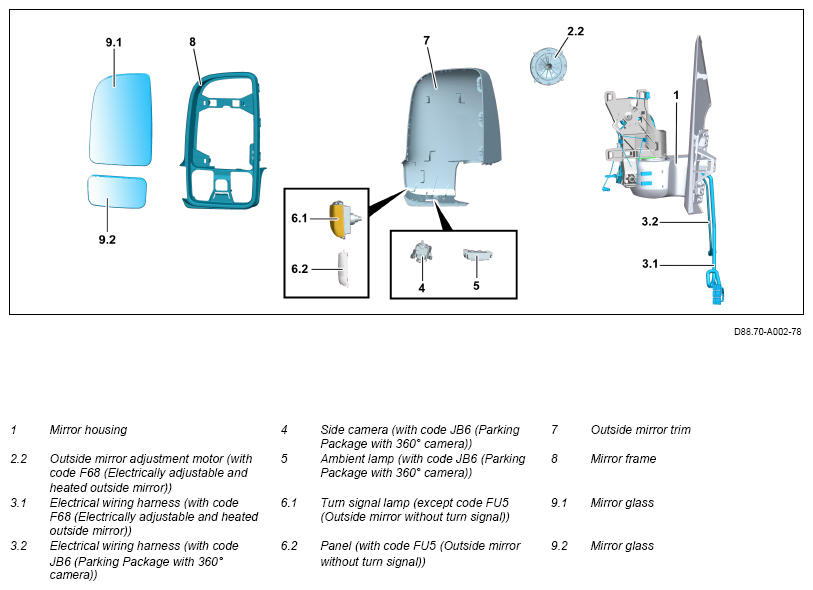

Shown except code XL4 (Weight variant 5, 500 kg) except code ZU7 (Canada national version) except code ZU8 (USA national version), model 910

	Disassemble/assemble
1	Remove left and right outside mirror.		AR88.70-D-9000TS
2	Remove upper mirror glass (9.1) and lower mirror glass (9.2).		AR88.70-D-9020TS
3	Remove outside mirror adjustment motor (2.2). |	Model 907 with code F68 (Electrically adjustable and heated outside mirror)	AR88.79-D-3475TS
4	Remove screw, unclip mechanical outside mirror adjustment (2.1) (arrows) and remove.	Model 907 with code XL4 (Weight variant 5, 500 kg), code ZU7 (Canada national version) or code ZU8 (USA national version), except code F68 (Electrically adjustable and heated outside mirror)
5	Remove mirror frame (8) and outside mirror trim (7).	Model 907 except code XL4 (Weight variant 5, 500 kg), code ZU7 (Canada national version) or code ZU8 (USA national version)	AR88.70-D-9040TS
		Model 907 with code XL4 (Weight variant 5, 500 kg), code ZU7 (Canada national version) or code ZU8 (USA national version)	AR88.70-D-9040TSS
6	Unclip electrical wiring harness (3.1) and guide out of mirror housing (1).	Model 907 with code F68 (Electrically adjustable and heated outside mirror)
7	Unclip electrical wiring harness (3.2) and guide out of mirror housing (1).	Model 907 with code JB6 (Parking Package with 360° camera)
8	Assemble in the reverse order.
