Oil Circuit, As-Built Configuration - GF27.55-D-2004TSA

18.03.2019  1

Transmission 725.0 in model 907

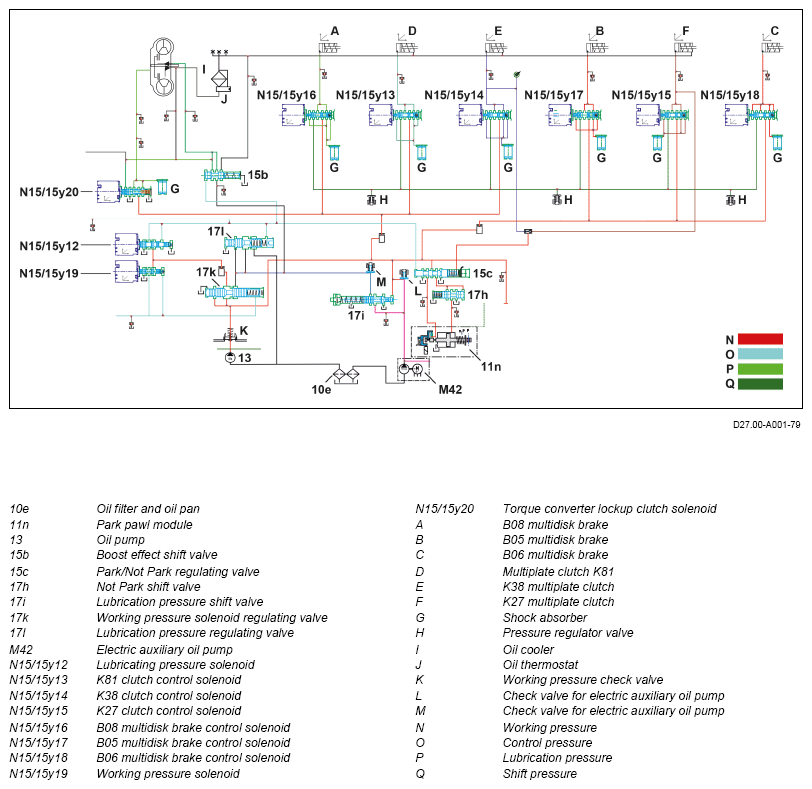

G13790207

Hydraulics diagram
