Remove/Install Left Engine Support - Ar22.10-D-4350TSV

Engine 642 in model 907

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Remove left engine mount.		AR22.10-D-4330TSV

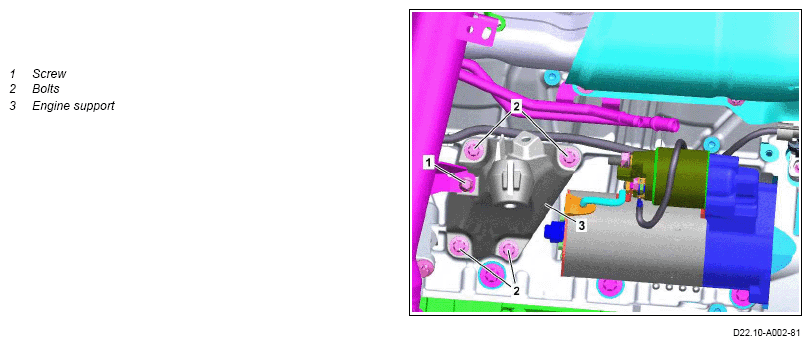

2	Remove screw/bolt (1).	Bolt, charge air line upstream of charge air cooler to engine carrier	*BA09.41-N-1006-01O
3	Remove engine carrier (3). Notes on threaded connections fastened using a tightening angle-based tightening process	To do this, remove screws (2).	AH00.00-P-0020-01A
		Bolt, engine support to crankcase	*BA22.10-N-1006-01TSR
4	Install in the reverse order.

CHARGE AIR PIPE, CHARGE AIR COOLING, MIXER HOUSING

Number	Designation		Engine 642
BA09.41-N-1006-01O	Bolt, charge air line upstream of charge air cooler to engine carrier	Nm	9

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation			Engine 642 in model 907
BA22.10-N-1006-01TSR	Bolt, engine support to crankcase	Stage 1	Nm	20
		Stage 2	∠ °	90
