Remove/Install Radiator - Ar20.20-D-3865TSV

Engine 642 in model 907

Shown with transmission 722.9 and with code HH9 (air conditioning, controlled semi-automatically, TEMPMATIC)

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Discharge air conditioning system.	Engine 642 in model 907 with code HH4 (THERMOTRONIC automatic climate control) Engine 642 in model 907 with code HH9 (Air conditioner, automatic heater control)	AR83.30-D-1760TS
2	Remove front bumper.		AR88.20-D-2000TS
3	Remove the fan cowl.		AR20.40-D-6800TSV
4	Drain off coolant.		AR20.00-D-1142TSR

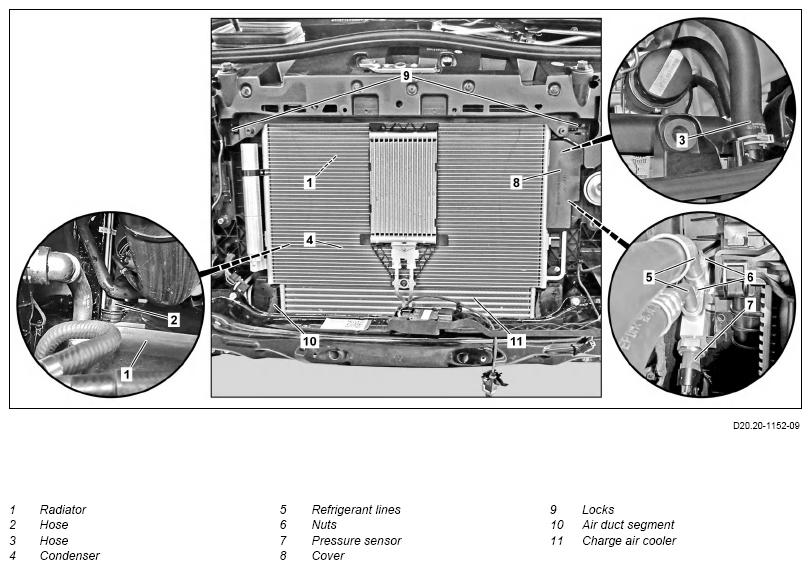

5	Remove the charge air hose upstream of the charge air cooler (11).		AR09.41-D-8621TSR
6	Remove the charge air hose downstream of the charge air cooler (11).		AR09.41-D-8625TSR
7	Remove the hose (2) from the cooler (1).		AR20.20-P-7441-01RQ
8	Remove the hose (3) from the cooler (1).	Hose clamp pliers	Fig 1
9	Remove the coolant expansion reservoir.		AR20.30-D-4949TS
10	Remove the fan unit for the condenser (4).	Engine 642 in model 907 with code HH4 (THERMOTRONIC automatic climate control) Engine 642 in model 907 with code HH9 (Air conditioner, automatic heater control)	AR83.30-D-0007TS
11	Remove the air duct segment (10) of the charge air cooler (11).	The air duct segment (10) is attached to the charge air cooler (11) at several points.
12	Remove the oil cooler for the automatic transmission from the condenser (4).	Engine 642 in model 907 with transmission 722.9	AR27.55-D-1000TS
13	Remove cover (8).	Engine 642 in model 907 with code HH4 (THERMOTRONIC automatic climate control) Engine 642 in model 907 with code HH9 (Air conditioner, automatic heater control)
14	Remove the refrigerant lines (5) from the condenser (4).	Engine 642 in model 907 with code HH4 (THERMOTRONIC automatic climate control) Engine 642 in model 907 with code HH9 (Air conditioner, automatic heater control)
	Compressor oils (specification 362.1)	To do so, remove nuts (6). Seal the refrigerant lines (5) and condenser (4).	BB00.40-P-0362-01A
		: Replace sealing rings and moisten with compressor oil. Nut, refrigerant condenser to refrigerant line	*BA83.30-N-1007-01TS
		Record plug	Fig 2
15	Disconnect the electrical connection for the pressure sensor (7).	Engine 642 in model 907 with code HH4 (THERMOTRONIC automatic climate control) Engine 642 in model 907 with code HH9 (Air conditioner, automatic heater control)
16	Remove the cooler (1).	To do so, release the locks (9) and carefully push the cooler (1) toward the engine.
17	Remove the cooler (1) upward.	:  Make sure that the cooler (1) is positioned correctly in guides in longitudinal members.
18	Remove hose of coolant expansion reservoir from cooler (1).	If the cooler (1) is replaced. Hose clamp pliers	Fig 1
19	Remove condenser (4) from cooler (1).	If the cooler (1) is replaced. Engine 642 in model 907 with code HH4 (THERMOTRONIC automatic climate control) Engine 642 in model 907 with code HH9 (Air conditioner, automatic heater control)	AR83.30-D-6540TS
20	Remove the charge air cooler (9) from the cooler (1).	If the cooler (1) is replaced.	AR09.41-D-6817TS
21	Install in the reverse order.
	Check
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
22	Check for leaktightness when engine is running.	Visual inspection only.

AIR CONDITIONING

Fig 1: Hose Clamp Pliers (454 589 00 37 00)

Fig 2: Record Plug (129 589 00 91 00)
