Remove/Install Fan - Ar20.40-D-5614TSR

Engine 651 in model 907

MODIFICATION NOTES

30.04.2021

GB document reference added

Operation step 2

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove air filter housing.		AR09.10-D-1150TS

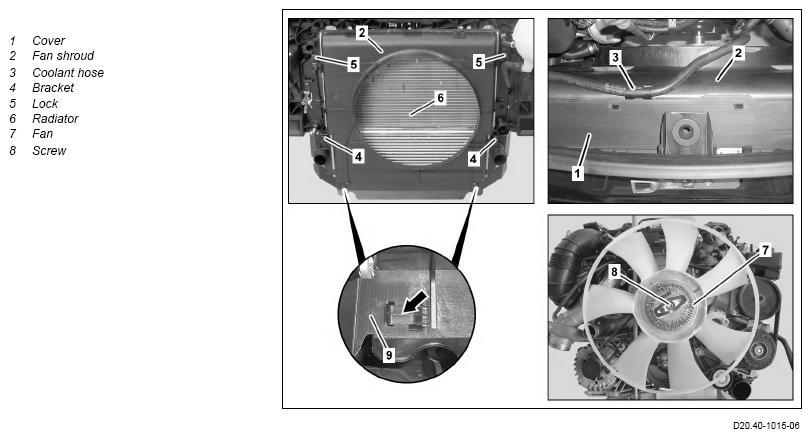

2	Remove cover (1).	Clip: Remove/install fan Depiction of operation steps 2, 4, 6, 7, 9, 10. To do this, unclip cover (1) from fan shroud (2).	GB20.40-D-0000-01A
3	Drain off coolant		AR20.00-D-1142TSR

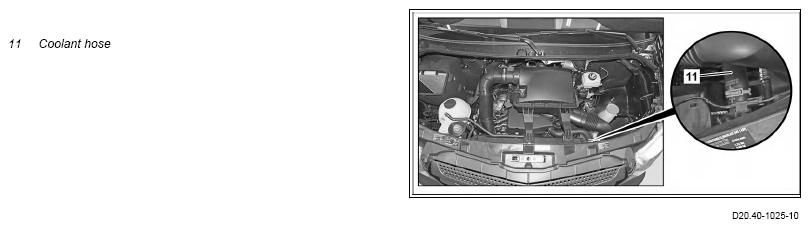

4	Remove coolant hose (11) from cooler (6).	Plug openings. Collect coolant which flows out. : Check spring bracket clamp. Commercially available devices/tools  Collecting pan Hose clamp pliers with wire cable Set of protective covers Depending on the findings, ↓ Replace spring bracket clamp.	Fig 2
5	Unclip coolant hose (3) on fan shroud (2).	Position coolant hose (3) outside of working area.
6	Unfasten locks (5).
7	Remove fan shroud (2).	To do this, remove fan shroud (2) upward out of the brackets (4) and place to the rear.
8	Cover cooler (6) in area of fan (7) with a protective plate.
	Guard plate for radiator/condenser		WF58.50-S-0110-01S
9	Remove screw (8). Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
		To do this, place counterholder on bel pulley of the coolant pump. Screw, fan to coolant pump	*BA20.40-N-1001-01TS
		Torque wrench	Fig 4
		Screwdriver	Fig 1
		Counterholder	Fig 3
10	Remove fan (7) with fan shroud (2) in upward direction.
11	Install in the reverse order.
	Check
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Perform an engine test run and check engine for leaks in area of coolant hose (11).	Visual inspection only.

FAN, FAN CLUTCH

Number	Designation		Model 907 with engine 651
BA20.40-N-1001-01TS	Screw, fan to coolant pump	Nm	45

Fig 1: Screwdriver (120 589 14 07 00)

Fig 2: Set Of Protective Covers (001 589 01 91 00)

Fig 3: Counterholder (651 589 05 40 00)

Fig 4: Torque Wrench (001 589 72 21 00)
