Check Cooling System Cap - Ar20.30-S-4300E

Model 907 with engine 274

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Check
1	Turn cap (1) on the expansion reservoir counterclockwise, initially by half a revolution, relieve overpressure, and remove cap (1) from the expansion reservoir.
2	Check the cap (1) for corrosion.	If corrosion is present, ↓ change the cap (1).

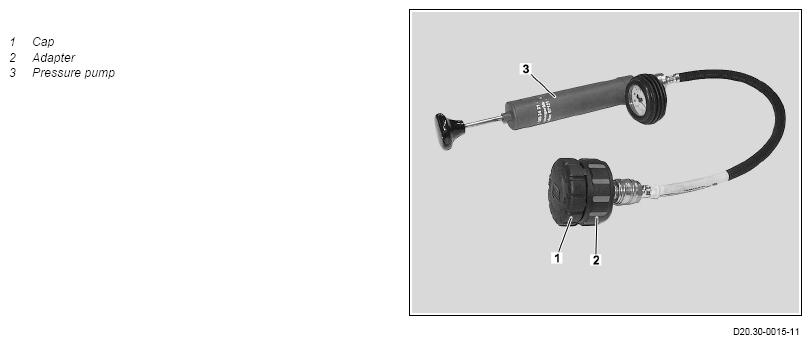

3	Attach adapter (2) to hose of pressure pump (3).	Adapter	Fig 2
		Pressure pump	Fig 1
4	Attach cap (1) to the adapter (2).
5	Slowly apply test pressure to cap (1) and determine opening pressure for stage 1.	Build up test pressure with max. 0.4 bar per second until opening pressure of stage 1 is reached. Test pressure must decrease once opening pressure of stage 1 is reached. When the valve is open, an escape of air with only a small flow volume is discernible. Overpressure valve closes max. 0.35 bar after opening pressure of stage 1 is reached. Pressure relief valve opens If the specified values are not reached, ↓ change the cap (1).	*BE20.30-N-1002-01B
6	Apply test pressure to cap (1) and determine opening pressure for stage 2.	Quickly build up test pressure until opening pressure of stage 2 is reached. Test pressure must decrease once opening pressure of stage 2 is reached. Pressure relief valve opens If the specified values are not reached, ↓ change the cap (1).	*BE20.30-N-1002-01B
7	Remove the cap (1) from the adapter (2).
8	Attach cap (1) to the expansion reservoir.

CHECK VALUES FOR ENGINE COOLING SYSTEM CAP

Number	Designation				Engine 274 in model 907
BE20.30-N-1002-01B	Pressure relief valve opens	Stage 1	New	bar	1,4 (±0,1)
			Used	bar	-
		Stage 2	New	bar	2,0 (±0,1)
			Used	bar	-

Fig 1: Pressure Pump (124 589 24 21 00)

Fig 2: Adapter (210 589 03 63 00)
