Remove/Install High-Pressure Line To Rail - Ar07.16-D-1004TSV
Engine 642 in model 907
| Risk of explosion caused by fuel Igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes about Common-Rail components | AH07.16-P-0002-01TX | ||
| Remove/install | |||
| 1 | Remove trim of left cylinder head cover | AR01.20-D-5018TSV | |

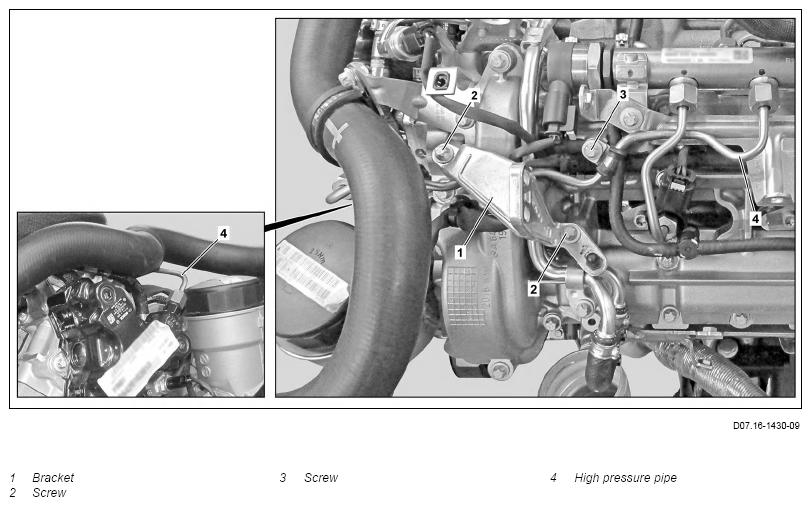

| 2 | Remove bracket (1). | ||
| 3 | Remove bolt (3). | *BA07.16-N-1013-03TSV | |
| 4 | Remove high-pressure line (4) at fuel high-pressure pump and rail. | ||
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | AH00.00-P-0015-01CW | ||
First slightly screw union nuts of high-pressure line (4) by hand onto fuel high-pressure pump and rail. Then tighten to torque and tightening angle. Tension can otherwise arise at high-pressure line (4). Collect escaping fuel. |
|||
| *BA07.16-N-1008-03TSV | |||
| *BA07.16-N-1007-03TSV | |||
| Fig 2 | |||
| Fig 1 | |||
| If high-pressure fitting at fuel high-pressure pump was released ↓ Remove high-pressure fitting, replace sealing ring and screw in high-pressure fitting again. |
|||
| *BA07.16-N-1010-03TSV | |||
| 5 | Remove high-pressure line (4). | ||
Depending on the findings, ↓ replace high-pressure line (4). |
Fig 3 | ||
| 6 | Install in the reverse order. | ||
| Check | |||
| Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure | Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. | AS07.16-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Check leak tightness in visible area when the engine is running. |
| Number | Designation | Engine 642 in model 907 | ||
|---|---|---|---|---|
| BA07.16-N-1007-03TSV | Union nut, high-pressure line for fuel system high pressure pump to rail | Stage 1 | Nm | 20 |
| Stage 2 | ∠ ° | 60 | ||
| Number | Designation | Engine 642 in model 907 | ||
|---|---|---|---|---|
| BA07.16-N-1008-03TSV | Union nut, high-pressure line for fuel system high pressure pump to fuel system high pressure pump | Stage 1 | Nm | 20 |
| Stage 2 | ∠ ° | 60 | ||
| Number | Designation | Engine 642 in model 907 | |
|---|---|---|---|
| BA07.16-N-1010-03TSV | Fitting on fuel system high pressure pump | Nm | 55 |
| Number | Designation | Engine 642 in model 907 | |
|---|---|---|---|
| BA07.16-N-1013-03TSV | Screw, high-pressure line retaining clamp to cylinder head cover/charge-air distributor | Nm | 9 |
