Remove/Install High-Pressure Line To Rail - Ar07.16-D-1004TSR
Engine 651 in model 907
| Risk of explosion
caused by fuel Igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure |
Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. |
AS07.16-Z-0001-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notes about Common-Rail components | AH07.16-P-0002-01TX | ||
| Remove/install | |||
| 1 | Remove the exhaust gas recirculation valve. | AR14.20-D-7662TSR | |
| 2 | Remove screws (2). | ||
| 3 | Loosen the cable duct (4) until you can access the union nut (5). | AR15.18-D-0004-01TSR | |
| *BA00.10-N-1002-01A | |||
| 4 | Remove the high-pressure line (1). | Seal the connections on the fuel system high-pressure pump and rail using suitable Fuel system can otherwise be damaged. wsm://04 201800 53 |
|
| *BA07.16-N-1006-03TS | |||
| *BA07.16-N-1005-03TS | |||

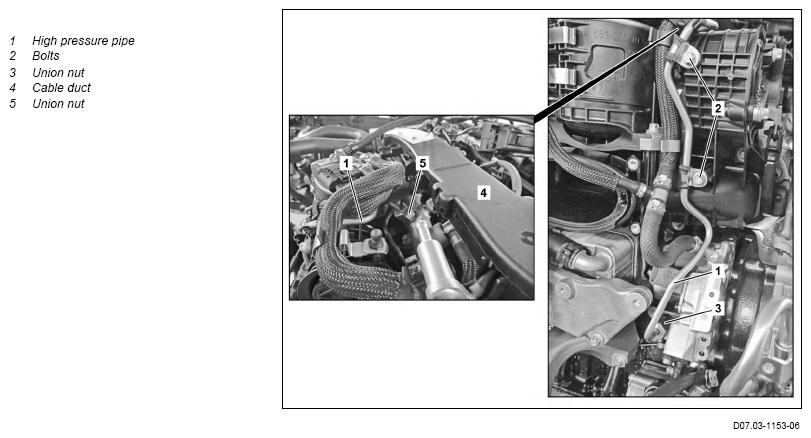

| Fig 1 | |||
| Fig 2 | |||
| 5 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Check for leaktightness when engine is running. |
| Number | Designation | 8.8 | 10.9 | ||
|---|---|---|---|---|---|
| BA00.10-N-1002-01A | M6 | Galvanized | Nm | 9 | 13 |
| Phosphated | Nm | 9 | 12 | ||
| Number | Designation | 12.9 | ||
|---|---|---|---|---|
| BA00.10-N-1002-01A | M6 | Galvanized | Nm | 16 |
| Phosphated | Nm | 14 | ||
| Number | Designation | Engine 651 in model 907 | ||
|---|---|---|---|---|
| BA07.16-N-1005-03TS | Union nut, high-pressure line for fuel system high pressure pump to fuel system high pressure pump | Stage 1 | Nm | 20 |
| Stage 2 | ∠ ° | 60 | ||
| Number | Designation | Engine 651 in model 907 | ||
|---|---|---|---|---|
| BA07.16-N-1006-03TS | Union nut, high-pressure line for fuel system high pressure pump to rail | Stage 1 | Nm | 20 |
| Stage 2 | ∠ ° | 60 | ||
