Remove/Install High-Pressure Fuel Pump - Ar07.02-D-1028TSR

Engine 651 in model 907

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure	Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized.	AS07.16-Z-0001-01A
	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes about Common-Rail components		AH07.16-P-0002-01TX
	Remove/install
1	Remove high-pressure line to rail.		AR07.16-D-1004TSR
2	Remove mounting plate (2).	To do this, remove screws/bolts (3).
		Bolt, mounting plate for charge air line to engine carrier	*BA09.41-N-1008-01TSR
3	Remove fuel lines (5, 6) and leak oil line from fuel high-pressure pump (1).	Seal connections of the fuel high-pressure pump (1), fuel lines (5, 6), and leak oil line with suitable stop plugs. Fuel system can otherwise be damaged. To do this, open clamps and catch escaping fuel. : Check clamps and fuel lines (5, 6) for damage.
		Pliers for click clamps	Fig 3
		Record plug In the case of damage, ↓ Replace damaged clamps and fuel lines (5, 6)	Fig 2
4	Detach electrical connector (7).

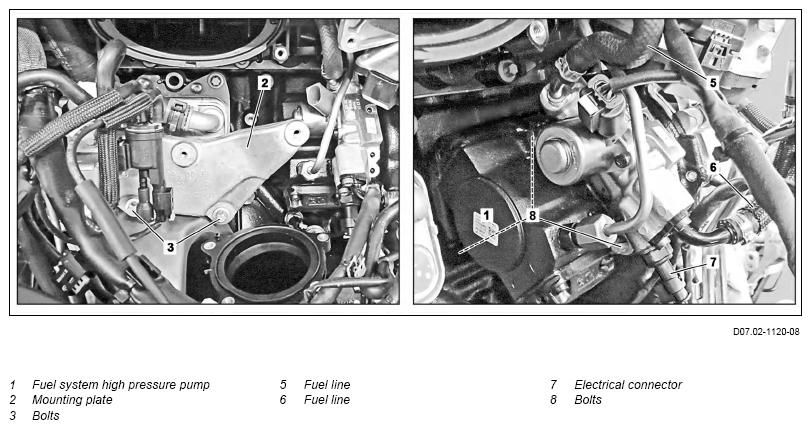

5	Remove fuel high-pressure pump (1).	To do so, remove screws (8). WIS Service Media wsm://04 201800_58
		: Clean sealing surfaces. Replace sealing ring and grease slightly.
		Special grease	*BR00.45-Z-1036-06A
		Bolt, fuel system high pressure pump to crankcase	*BA07.16-N-1009-03TS
	Check
6	Check driver.	If the fuel high-pressure pump (1) is not replaced. To do this, remove the driver. : Make sure that drive plate is seated correctly. If the driver is damaged, ↓ Replace driver.
7	Check coupling flange at fuel high-pressure pump (1).	If fuel high-pressure pump (1) is not replaced. To do this, remove coupling flange.
		Nut, coupling flange to fuel high-pressure pump	*BA07.16-N-1008-03TS
		Counterholder If the coupling flange is damaged, ↓ Replace coupling flange, nut and driver.	Fig 1
8	Install in the reverse order
	Check
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
9	Check for leaktightness when engine is running.	Visual inspection only.

HIGH-PRESSURE LINE, FUEL INJECTOR, RAIL

Number	Designation		Engine 651 in model 907,
BA07.16-N-1008-03TS	Nut, coupling flange to fuel high-pressure pump	Nm	70

HIGH-PRESSURE LINE, FUEL INJECTOR, RAIL

Number	Designation		Engine 651 in model 907,
BA07.16-N-1009-03TS	Bolt, fuel system high pressure pump to crankcase	Nm	20

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 651 in model 907
BA09.41-N-1008-01TSR	Bolt, mounting plate for charge air line to engine carrier	Nm	20

Fig 1: Counterholder (651 589 04 40 00)

Fig 2: Record Plug (129 589 00 91 00)

Fig 3: Pliers For Click Clamps (171 589 00 37 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1036-06A	Special grease	A 001 989 42 51 10
