Remove/Install Fuel Injectors - Ar07.16-D-1020TSV

Engine 642 in model 907

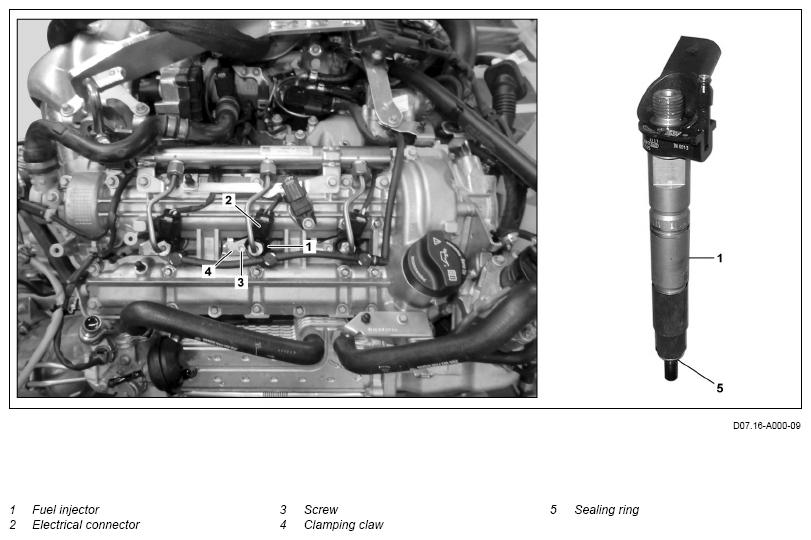

Shown on right cylinder head on removed engine

G13786701
  Risk of explosion  caused by fuel igniting.
Risk of injury  to skin and eyes caused by fue spraying out at high pressure
Keep all ignition sources out of hazard area.
Do not carry out any work on system when it is pressurized.
AS07.16-Z-0001-01A
  Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
  Notes on injectors   AH07.16-P-1000-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes about Common-Rail components   AH07.16-P-0002-01TX
REMOVING Remove
1 Remove high-pressure line of the respective fuel injector (1).   AR07.16-D-1003TSV
2 Disconnect electrical connection (2).
3 Remove screw (3). IMPORTANT Replace screw/bolt (3).
    TORQUE SPECIFICATION Bolt, clamping claw to fuel injector *BA07.16-N-1001-03TSV
4 Remove clamping claw (4).
5 Remove fuel injector (1). NOTES
Store fuel injector (1) upright.
Malfunctions of injectors can otherwise occur.
IMPORTANT When removing several fuel injectors (1), mark these assigned to the cylinders.

    IMPORTANT Grease stem of the fuel injector (1).
Special grease
*BR00.45-Z-1036-06A
    If one or more fuel injectors (1) are stuck:

Replace affected fuel injectors (1).

      AR07.16-S-1000-03SE
    SPECIAL TOOL Impact extractor Fig 2
    SPECIAL TOOL Threaded adapter
If the stuck fuel injector (1) of cylinder 6 will be replaced:

Remove brake booster.
Fig 3
      AR43.10-D-0350H
CLEANING Clean
6 Clean fuel injector (1)
7 Clean injector well of fuel injector (1). SPECIAL TOOL Round brush Fig 4
    SPECIAL TOOL Cylinder brush Fig 1
INSTALLING Install
8 Remove sealing ring (5). IMPORTANT Replace sealing ring (5).
9 Install fuel injector (1). IMPORTANT Observe marking with respective assignment of cylinders during installation of several fuel injectors (1).
    IMPORTANT Grease well at fuel injector (1).
Special grease
*BR00.45-Z-1036-06A
10 Install clamping claw (4).
11 Screw in bolt (3). IMPORTANT Replace screw/bolt (3).
    TORQUE SPECIFICATION Bolt, clamping claw to fuel injector *BA07.16-N-1001-03TSV
12 Connect electrical connector (2).
13 Install high-pressure line of respective fuel injector (1).   AR07.16-D-1003TSV
14 Connect diagnostic device, read out fault memory and enter injector classification in diesel injection system control unit. When replacing fuel injector (1).
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect/disconnect diagnostic unit   AD00.00-D-2000-06TS
    If existing faults are shown:

Erase the fault memory.

15 Disconnect diagnostic unit. When replacing fuel injector (1).
INSPECT Check
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
16 Check for leaktightness when engine is running. IMPORTANT Visual inspection only.
TORQUE SPECIFICATION COMMON RAIL DIESEL INJECTION SYSTEM

Number Designation Engine 642 in model 907
BA07.16-N-1001-03TSV Bolt, clamping claw to fuel injector Stage 1 Nm 7
Stage 2 ∠ ° 180
Fig 1: Cylinder Brush (668 589 00 68 00)
G13786702
Fig 2: Impact Extractor (355 589 01 63 00)
G13786703
Fig 3: Threaded Adapter (642 589 01 33 00)
G13786704
Fig 4: Round Brush (611 589 00 68 00)
G13786705
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1036-06A Special grease A 001 989 42 51 10
