Remove/Install Fuel Injectors - Ar07.16-D-1020TSR
Engine 651 in model 907
| Risk of explosion
caused by fuel Igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure |
Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. |
AS07.16-Z-0001-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notes on injectors | AH07.16-P-1000-01S | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes about Common-Rail components | AH07.16-P-0002-01TX | ||
| Remove/install | |||

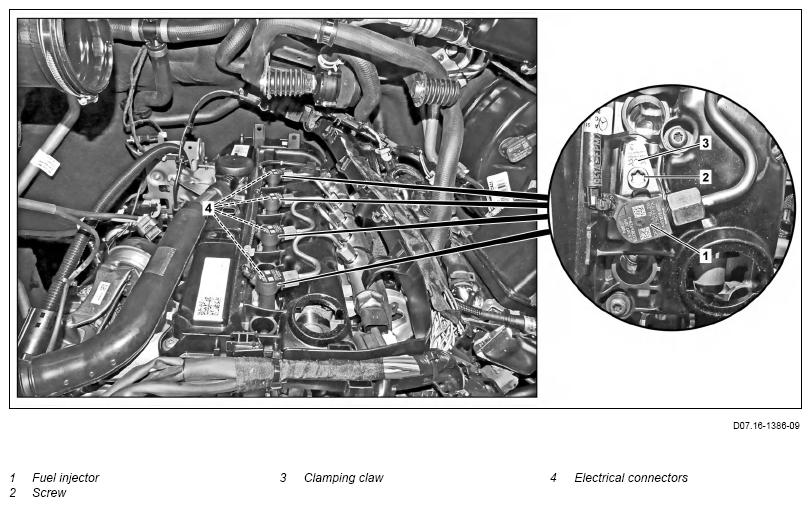

| 1 | Remove high-pressure lines to fuel injectors (1). | AR07.16-D-1003TSR | |
| 2 | Remove leak oil line from fuel injectors (1). | AR07.03-D-9110TSR | |
| 3 | Disconnect electrical connections (4). | ||
| 4 | Remove screws (2) of clamping claws (3). Notes on threaded connections fastened using a tightening angle-based tightening process |
AH00.00-P-0020-01A | |
| *BA07.16-N-1003-03TS | |||
| 5 | Remove fuel injectors (1) with sealing rings and clamping claws (3). | Fuel injectors (1) must be stored vertically (connections facing upwards) and not placed on their sides. It is thus prevented that air gets into fuel injectors (1), as this could result in engine starting and/or engine running problems during reinstallation. See Parts Information for stop plugs to be used. Replacement part number: A 000 982 89 09 Install new sealing rings and coat injector shafts with special grease. |
|
| Special grease If damage is present: ↓ Replace, in each case, damaged threaded bushings in cylinder head. |
*BR00.45-Z-1036-06A | ||
| AR07.03-D-0015-01TSF | |||
| Screw-in dimension, threaded bushing to cylinder head | *BE07.16-N-1001-01TS | ||
| *BA07.16-N-1010-03TS | |||
| Mounting adhesive, Loctite 648 | *BR00.45-Z-1010-02A | ||
| Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A | ||
| Clean | |||
| 6 | Clean fuel injectors (1) and injector wells. | Fig 1 | |
| Fig 2 | |||
| 7 | Install in the reverse order. | ||
| 8 | Enter classification of the fuel injectors (1) in the control unit. | When replacing fuel injectors (1). | |
| AD00.00-D-2000-06TS | |||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Check for leaktightness when engine is running. |
CHECK VALUES FOR INJECTOR
| Number | Designation | Engine 651 in model 907 | |
|---|---|---|---|
| BE07.16-N-1001-01TS | Screw-in dimension, threaded bushing to cylinder head | mm | 37 (±1,0) |
| Number | Designation | Engine 651 in model 907 | ||
|---|---|---|---|---|
| BA07.16-N-1003-03TS | Bolt, injection nozzle clamping claw to cylinder head | Stage 1 | Nm | 15 |
| Stage 2 | ∠ ° | 90 | ||
| Stage 3 | ∠ ° | 90 | ||
| Number | Designation | Engine 651 in model 907 | ||
|---|---|---|---|---|
| BA07.16-N-1010-03TS | Threaded bushing to cylinder head | Reference value | Nm | ≈ 20 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-02A | Mounting adhesive, Loctite 648 | A 003 989 32 71 10 |
| BR00.45-Z-1036-06A | Special grease | A 001 989 42 51 10 |
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
