Remove/Install Drive Plate - Ar03.30-D-8003TSV

Engine 642 in model 907 with transmission 722.9

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Remove
1	Remove automatic transmission.		AR27.10-D-0005TSR

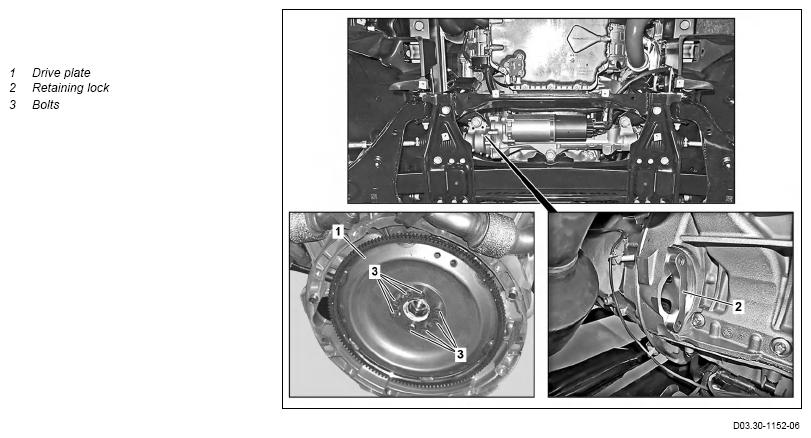

2	Install retaining lock (2).	Retaining lock If necessary, ↓ Turn engine in direction of engine rotation.	Fig 1
			AR01.00-D-0100-01TSV
		Socket wrench bit	Fig 2
3	Remove screw/bolts (3).
4	Remove retaining lock (2).	Retaining lock	Fig 1
5	Remove drive plate (1).
	Check
6	Check ring gear of drive plate (1) for damage.	Depending on the findings, ↓ Install new drive plate (1).
7	Check starter drive pinion for damage.	Depending on the findings, ↓ Replace starter. Remove/install starter	AR15.30-D-7100TSV
8	Check cap with radial shaft sealing ring in terms of leak tightness.	Depending on the findings, ↓ replace cap with radial shaft sealing ring. Remove/install cover with radial shaft sealing ring	AR01.40-D-8925TSV
	Install
9	Install drive plate (1).	Screw in screws (3) loosely by hand.
10	Install retaining lock (2).	Retaining lock	Fig 1
11	Tighten bolts (3).	Bolt, drive plate to crankshaft	*BA03.30-N-1002-07TSV
12	Remove retaining lock (2).	Retaining lock	Fig 1
13	Install automatic transmission.		AR27.10-D-0005TSR

FLYWHEEL, DRIVE PLATE

Fig 1: Retaining Lock (112 589 03 40 00)

Fig 2: Socket Wrench Bit (001 589 65 09 00)
