Remove/Install Rear-Panel Window - Ar67.20-D-2001TS

Model 907.1/2

with code F35 (Cab rear wall with window)

Shown on model 907.2

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on removal/installation of windows		AH67.10-P-1000-02RT
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove
1	Remove the paneling from the top of the rear wall (3).	Model 907.2 with code F35 (Cab rear wall with window)	AR68.30-D-4751TSR
2	Release the sealing lip (arrow A) of the seal (2) in the cab from the rear wall (3) all around.	The aid of a helper is required to hold the rear-wall window (1) from outside. Long wedge	Fig 1
3	Push the sealing lip (arrow A) of the seal (2) over the fold (arrow B) of the rear wall (3).	Carefully push the sealing lip (arrow A) over the fold (arrow B). Otherwise the rear-wall window (1) could smash. Helper required.
4	Remove the rear-wall window (1) with seal (2) in the direction of the vehicle exterior.	Helper required.
5	Remove the seal (2) from the rear-wall window (1).
	Install
6	Attach the seal (2) to the rear-wall window (1).	Ensure that the seal (2) is installed in the correct position and is seated correctly. This prevents the seal (2) from being damaged when the rear-wall window (1) is installed.
7	Insert the pulling cord in the groove of the sea (2).	Commercially available devices/tools  Cord inserter
8	Coat the seal (2) and fold (arrow B) of the rear wall (3) with lubricating paste.	Antifriction paste, rubber parts 2.5 kg, DBL 6867.00	*BR00.45-Z-1002-06A
9	Place the rear-wall window (1) with seal (2) on the rear wall cutout (3) from the outside and align.	Helper required.
10	Using the pulling cord, pull the sealing lip (arrow A) of the seal (2) over the fold (arrow B) on the rear wall (3).	Carefully pull the sealing lip (arrow A) over the fold (arrow B). Otherwise the rear-wall window (1) could smash. Carefully press on the rear-wall window (1). Otherwise the rear-wall window (1) could smash. Gently press on the rear-wall window (1) here. Helper required. Commercially available devices/tools  Cord inserter
11	From outside, press on the seal (2) on the rea wall (3) over the entire circumference of the rear-wall window (1).	Make sure that the seal (2) is seated orrectly.
	Clean
12	Clean the rear-wall window (1), rear wall (3) and seal (2).
13	Install the paneling on the top of the rear wall (3).	Model 907.2 with code F35 (Cab rear wall with window)	AR68.30-D-4751TSR

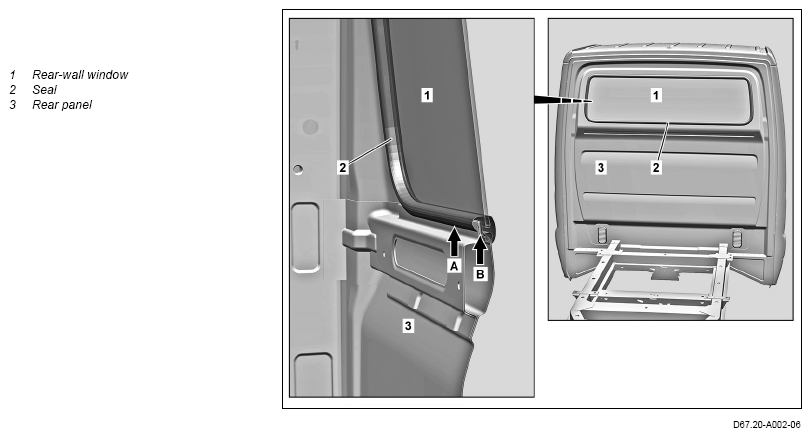

Fig 1: Long Wedge (115 589 03 59 00)
