Remove/Install Curb Mirror - Ar88.70-D-9001TS

Model 907

with code F63 (Ramp mirror)

with code ZS8 (National version for China)

	Remove

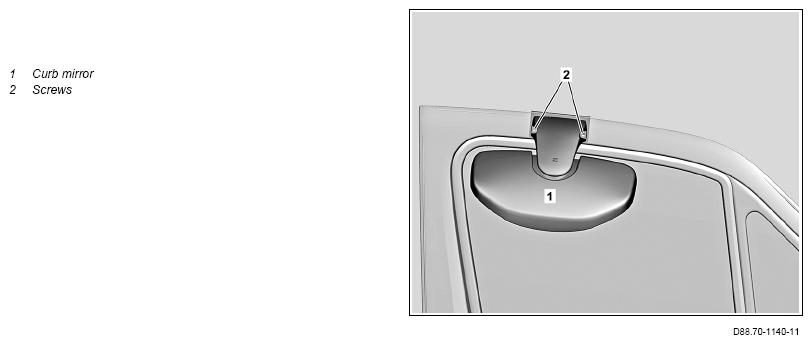

1	Remove the curb view mirror (1).	To do this, remove screws (2).

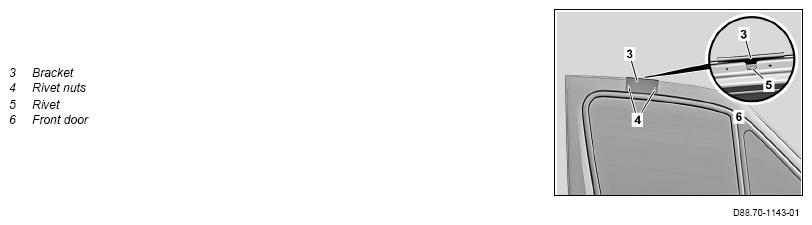

2	Remove the bracket (3).	If the bracket (3) replaced. In this case, drill out rivet nuts (4) and rivet (5). Dispose of rivet nuts (4) and rivet (5). Commercially available devices/tools  Hand drill
	Install
3	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors. Install bracket (3).	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated. If the bracket (3) or the front door (6) has been replaced.	AS98.00-Z-0002-01A
		Commercially available devices/tools  Hand drill Wet and dry vacuum cleaner Blind rivet tool	AR88.70-D-9001-02TS
4	Install the curb view mirror (1).	Screw in screws (2) to do this. Ensure that seal is seated correctly between the curb view mirror (1) and the bracket (3). If the seal is not seated correctly or is damaged: ↓ Replace seal.
