Lower Housing Part For Electric Step Removal And Installation - Ar88.30-D-8501TS

Type 907

with Code T57 (Electric step loading space sliding door on the right)

Type 907

with Code T58 (Electric step in the loading compartment sliding door on the left)

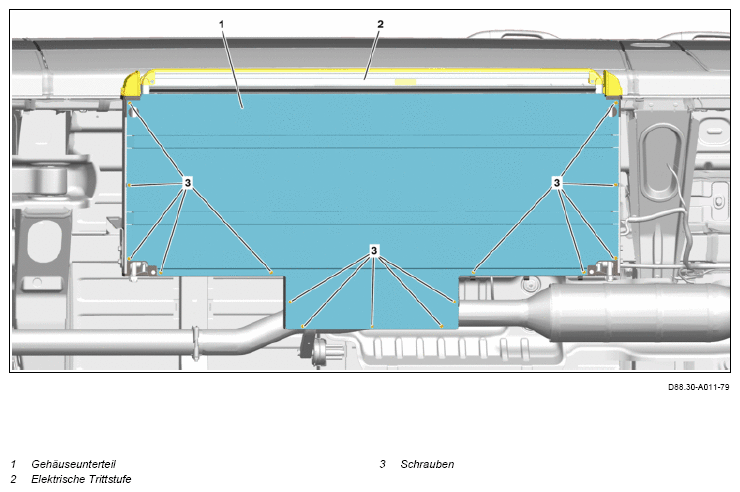

Displayed on Type 907.7 with Code T57 (Electric step loading space sliding door on the right)

	Removing, installing
	Risk of death  by slipping or tipping the vehicle off the lifting platform.	Align the vehicle between the lifting platform columns and place the four support plates at the lifting platform support points prescribed by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Instructions for lifting and jacking up	Type 907	AH00.60-N-0100-01TS
		Type 907	AR00.60-D-1000-04TS
2		Type 907 Screw the lower part of the housing to the step	*BA88.30-N-1004-02TS
3	Install in reverse order.
