Subsequently Refinish Step - An88.30-D-0007-02TS

Model 907.6/7

with code W73 (Rear door step)

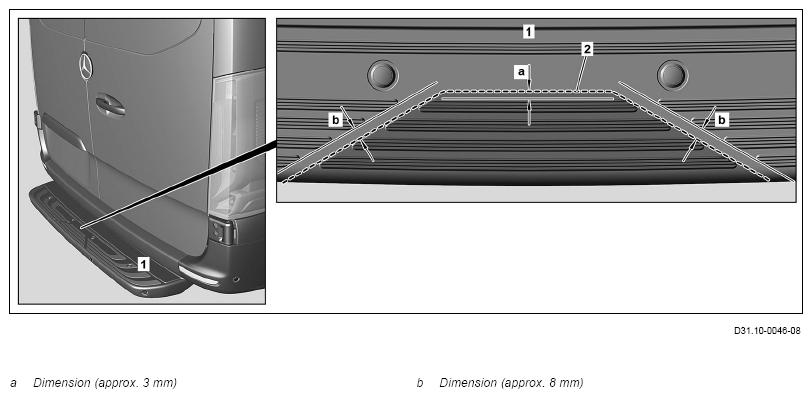

1. Mark reference edges on outside edge of corrugation on running board (1), as shown.
2. Mark separating point (2).

   Observe dimensions (A, B).

3. Disconnect running board (1) at separating point (2).
4. Use suitable tool to deburr edges.

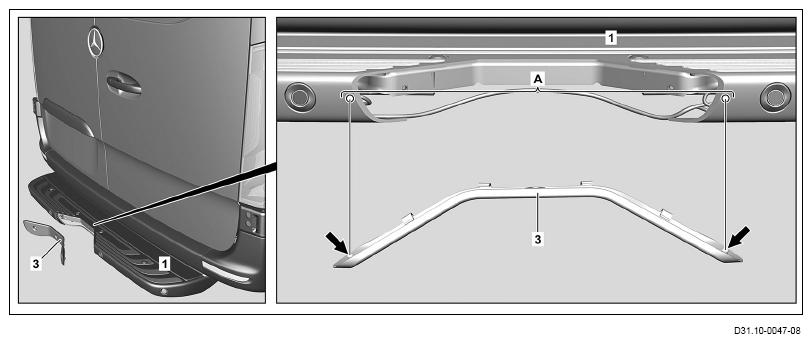

5. Transfer position of catches (arrows) of trim (3) to running board (1).
6. Drill holes for catches (arrows) of trim (3) (area A) with a diameter of 6 mm.
7. Use suitable tool to deburr bores (area A).
8. Clip in catches (3).

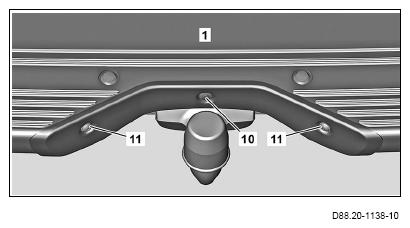

9. Install expansion rivet (10).
10. Screw in screws (11).
