Retrofit Rear Running Board - An88.30-D-0013TS

Model 907.6

with code Q11 (Longitudinal member reinforcement)

except code Q10 (Cross member for coupling)

except code Q20 (Trailer hitch (jaw-type))

except code Q22 (Trailer coupling, rigid coupling head)

except code Q50 (Trailer coupling with removable ball-type head)

except code QA0 (Trailer hitch 2.8 t towing capacity, bolted)

except code QA2 (NAFTA trailer crossmember, towing capacity 7500 lbs)

except code QA7 (Trailer hitch for increased towing capacity 3.5 t)

except code QA8 (Trailer hitch for increased towing capacity 2.8 t/3.0 t)

10.11.2020

Ordering information changed.

Shown on model 907.6 except code IR2 (Wheelbase 3250 mm)

Shown on model 907.6 except code IR2 (Wheelbase 3250 mm)

Shown on model 907.6 with code IR2 (Wheelbase 3250 mm) left side of vehicle

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Install
1	Raise vehicle. Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
			AR00.60-D-1000-04TS
2	Remove towing eye.	Model 907.6 with code Q67 (Rear towing eye) The removed towing eye is no longer required and must be handed over to the customer or properly disposed of after consultation with the customer.

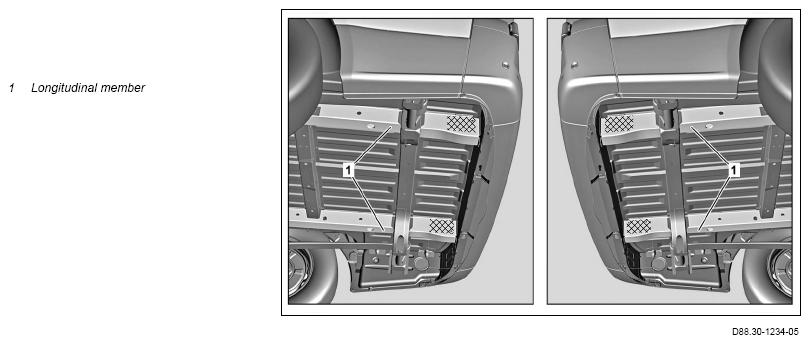

3	Remove underbody protection.	Remove underbody protection in hatched areas at longitudinal members (1) using suitable tool.
4	Clean contact surfaces in hatched areas at longitudinal members (1).	Cleaner	*BR00.45-Z-1025-04A
5	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors. Check longitudinal members (1) for paint damage.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
	General notes on touch-up applicators and paint spray cans	Only use paints or touch-up paint pens approved by Daimler AG: http://xentryportal.mercedes-benz.com  If paint damage is present on longitudinal members (1) ↓ Repair paint damage using suitable brush or touch-up paint pen.	AH98.00-P-9409-06A

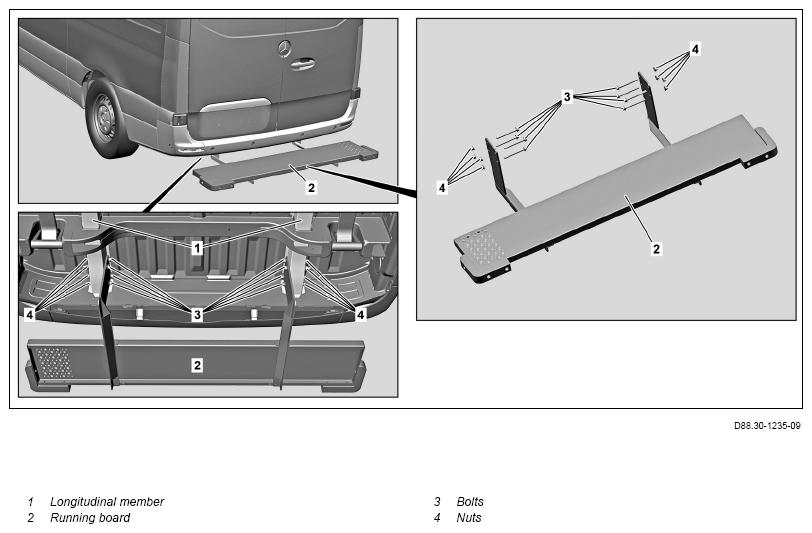

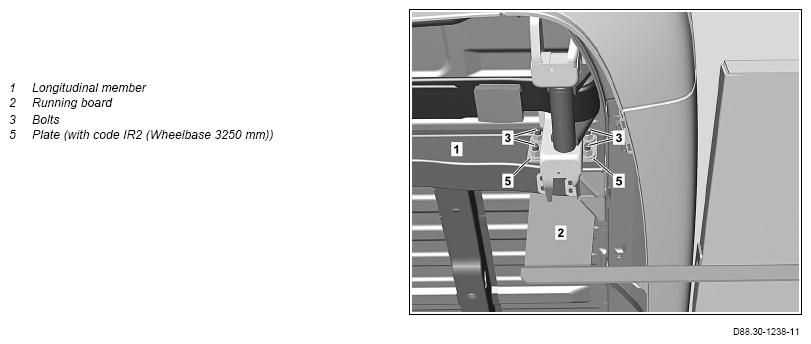

6	Retrofit running board (2).	Helper required. Model 907.6 except code IR2 (Wheelbase 3250 mm) For this purpose, insert screws (3), as shown, in longitudinal members (1) and attach nuts (4). Counterhold bolts (3). Model 907.6 with code IR2 (Wheelbase 3250 mm) For this purpose, guide screws (3), as shown, through longitudinal members (1) and screw into plates (5). Screw/nut, running board to longitudinal member	*BA88.30-N-1004-03TS
7	Enter special equipment into online vehicle data card.	Designation of affected special equipment W75 (Wide step at rear) Model 907.6 with code Q67 (Rear towing eye) Remove existing code Q67 (Rear towing eye). Attach "Trailer hitch with trailer coupling retrofitted as per AN88.30-D-0013TS  note" under field organization texts to KG88 (DG31).
8	Perform SCN coding on reversing camera (RFK) control unit.	Model 907.6 with code FR8 (Reversing camera) or code JB6 (Parking Package with 360° camera) or code JB7 (Parking package with reversing camera) Under the "Control unit adaptations" menu item follow the instructions for "SCN coding".	AR54.21-D-0015TS

Number	Designation		Model 907
BA88.30-N-1004-03TS	Screw/nut, running board to longitudinal member	Nm	94

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

Part no.	Designation	Quantity
KG88	Running board parts (see "XENTRY Parts Information")	n.B.
