Remove/Install Windshield - AR67.10-P-1700S

Model 223

except code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
	Notes on removal/installation of windshield		AH67.10-P-1000-03MFA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1	Remove front drip rails from A-pillars.	Model 223 except code Z07 (B7 armoring on special protection version) Model 223.0/1 except code Z07 (B7 armoring on special protection version)	AR88.80-P-4000S
2	Remove wiper arms.		AR82.30-P-6100S
3	Remove covers of air/water duct.

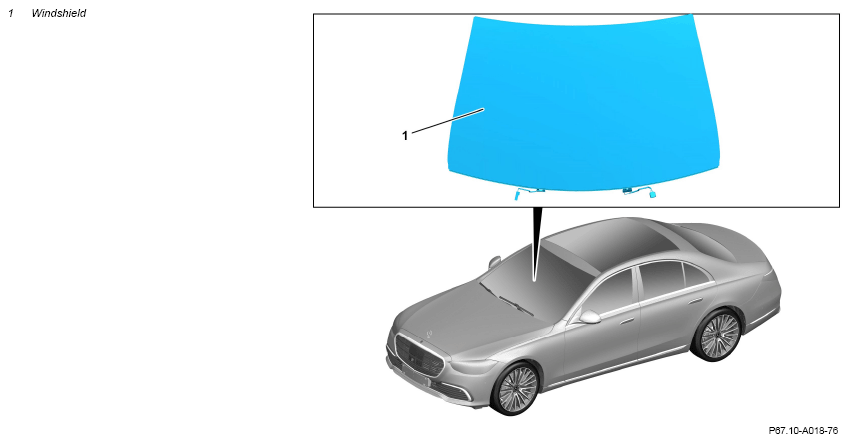

4	Disconnect electrical connectors on windshield (1) and fix in place to top of windshield (1).	The number of electrical connectors can vary depending on the equipment variant.
5	Remove A-pillar trims.		AR68.30-P-4050S
6	Remove inside rearview mirror.		AR68.40-P-0001S
7	Remove rain and light sensor.		AR82.30-P-7801S
8	Remove multifunction camera.		AR54.21-P-3000S
9	Remove augmented reality camera.	Model 223 with code U19 (Augmented reality video) except code Z07 (B7 armoring on special protection version)	AR54.30-P-0004S
10	Cover vehicle interior in the repair area.
11	Mask off areas around windshield (1) with suitable tape.
	Risk of injury  from cutting wire tearing or becoming hot and from splinters of glass when cutting out bonded windows	Wear protective gloves and safety glasses.	AS67.00-Z-0004-01A
12	Cut out and remove windshield (1).	Helper required for removal of windshield (1).	AR67.10-P-1000-11SX
13	Carry out redocumentation of windshield (1).	Model 223 with code 445 (Head-up display with augmented reality.) except code Z07 (B7 armoring on special protection version) When replacing windshield (1).	AR67.10-P-1700-11S
	Install
Notice	Notes on handling adhesive		AH67.00-P-1000-01A
14	Prepare window frame of the windshield (1) for installation.		AR67.10-P-1700-03S
Notice	General notes about painting the body flange in the glazing area	Use only primer fillers and primer sticks approved by Daimler AG: https://xentry.daimler.com	AH98.00-P-9408-06A
15	Prepare windshield (1) for installation.	Model 223 with code 445 (Head-up display with augmented reality.) except code Z07 (B7 armoring on special protection version) Windshield (1) must be replaced.	AR67.10-P-1700-04S
16	Glue new spacers onto windshield (1).	Model 223 except code 445 (Head-up display with augmented reality.) except code Z07 (B7 armoring on special protection version) If the windshield (1) is reused. Use old positions to determine spacer positions. Remove protective film from spacers only on one side.
17	Align windshield (1) in body opening.	Aid of helper required.	AR67.10-P-1000-09S
		Distance between top edge of window and front edge of roof	*BE67.10-P-1001-01E
		Feeler gauge	Fig 3
18	Remove protective film from spacers.
19	Apply adhesive material.	Install windshield (1) within 10 min after applying adhesive material. Otherwise the adhesive force of the adhesive material starts to decrease.	AR67.10-P-1000-08S
		Adapter	Fig 1
20	Close hood.
21	Install windshield (1).		AR67.10-P-1700-05S
		Aid of helper required.
		Observe the manufacturer's specifications for the curing time of the adhesive material. Perform following work only after curing time.
22	Close side window of the driver's door.
23	Remove tape and cover material from vehicle.
24	Clean repair area.
25	Install augmented reality camera.	Model 223 with code U19 (Augmented reality video) except code Z07 (B7 armoring on special protection version)	AR54.30-P-0004S
26	Install multifunction camera.		AR54.21-P-3000S
27	Install rain and light sensor.		AR82.30-P-7801S
28	Install inside rearview mirror.		AR68.40-P-0001S
29	Install A-pillar trims.		AR68.30-P-4050S
30	Connect electrical connectors at windshield (1) and lock.	The number of electrical connectors can vary depending on the equipment variant.
31	Install covers of air/water duct.
32	Install wiper arms.		AR82.30-P-6100S
33	Attach front drip rails to A-pillars.	Model 223 except code Z07 (B7 armoring on special protection version) Model 223.0/1 except code Z07 (B7 armoring on special protection version)	AR88.80-P-4000S
	Check
34	Check head-up display.	Model 223 with code 438 (Head-up display, Classic.) except code Z07 (B7 armoring on special protection version)	AR54.30-P-6401S
			AD00.00-P-2000-06FR
		If head-up display is not displaying correctly, ↓ calibrate head-up display using diagnostic system.
35	Check head-up display using diagnostic system.	Model 223 with code 445 (Head-up display with augmented reality.) except code Z07 (B7 armoring on special protection version)	AD00.00-P-2000-06FR
		Calibration device If head-up display is not displaying correctly, ↓ calibrate head-up display using diagnostic system.	Fig 2
