Basic Setting For Front Window - AR72.10-P-1950-06LC

Model 217.3

CHECK VALUES FOR SIDE WINDOWS

Number Designation Model 217.3
BE67.30-P-1007-01G Distance between edge of front door and side window Dimension "a" mm 6
FRONT DOOR

Number Designation Model 217
BA72.10-P-1007-01X Bolt, side window to power window rail Nm 13

NOTES When closing the door, make sure that the rotary tumbler is open.

Otherwise the door lock can be damaged.

IMPORTANT The basic setting for the side window is to be performed when the front door is open and the rotary tumbler closed.

G15300842Courtesy of MERCEDES-BENZ USA

Check

  1. Position door lining on left and right front door and connect electrical connectors to front door control unit switch group.
  2. Switch on ignition.
  3. Move side window to upper end position with front door open and rotary tumbler closed.
  4. Switch off ignition.
  5. Disconnect electrical connectors on front door control unit switch group and remove door lining.

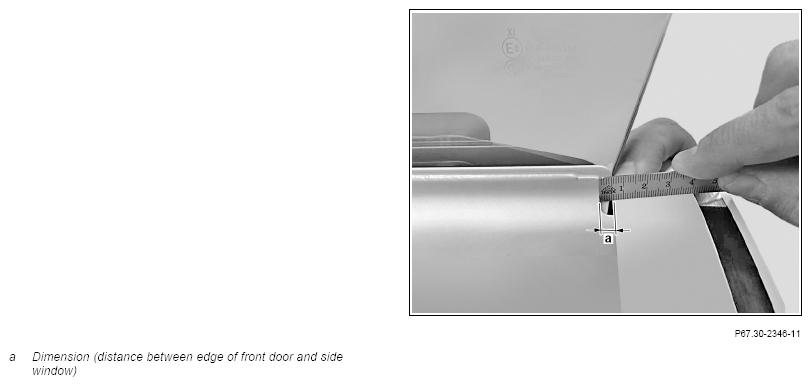

  6. Measure distance (a) between edge of front door and side window using suitable rectangular aids (e.g. credit card) with vernier caliper as shown.

    If measuring results deviate

    Adjust side window.

    Adjust

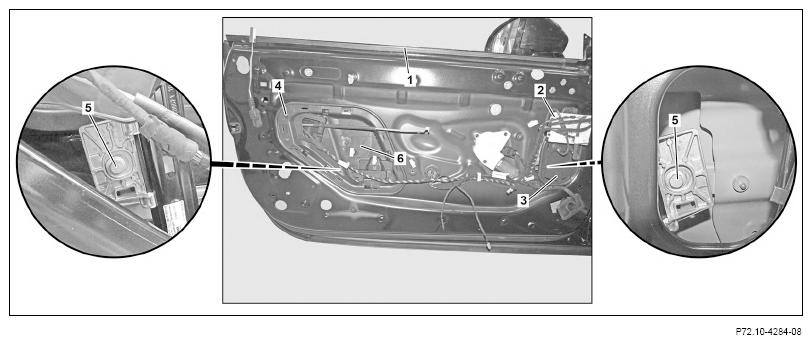

  7. Unclip cover (6).
  8. Unclip cover (3).
  9. Position door lining on left and right front door and connect electrical connectors to front door control unit switch group.
  10. Switch on ignition.
  11. Move side window down until bolts (5) are accessible.
  12. Switch off ignition.
  13. Disconnect electrical connectors on front door control unit switch group and remove door lining.
    G15300843Courtesy of MERCEDES-BENZ USA
    G15300844Courtesy of MERCEDES-BENZ USA
  14. Loosen bolts (5).
  15. Move side window out of power window until dimension (a) is set.
  16. Fully tighten bolts (5) TORQUE SPECIFICATION
  17. Position door lining on left and right front door and connect electrical connectors to front door control unit switch group.
  18. Switch on ignition.
  19. Move side window to upper end position.
  20. Switch off ignition.
  21. Disconnect electrical connectors on front door control unit switch group and remove door lining.
  22. Measure dimension (a).

    If dimension (a) is correct.

    Continue with operation step 23

    If dimension (a) is not correct.

    Adjust side window again.

  23. Clip in cover (3).
  24. Clip in cover (6).
