Remove/Install Tank Recess - AR88.60-P-2000LC
MODEL 217
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Lift vehicle on vehicle lift | ||
| 2 | Remove fender liner in right rear fender | AR88.10-P-1400LC | |
| 3 | Mask rear fender in front area of fuel filler flap (9) | ||

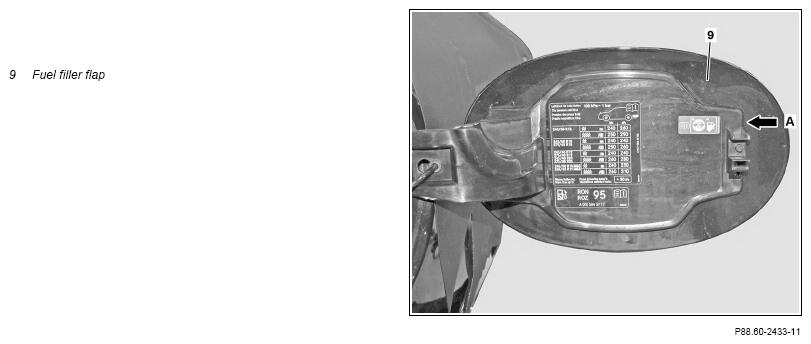

| 4 | Unlock fuel filler flap (9) from catch hook (arrow A) and remove from hinge | ||

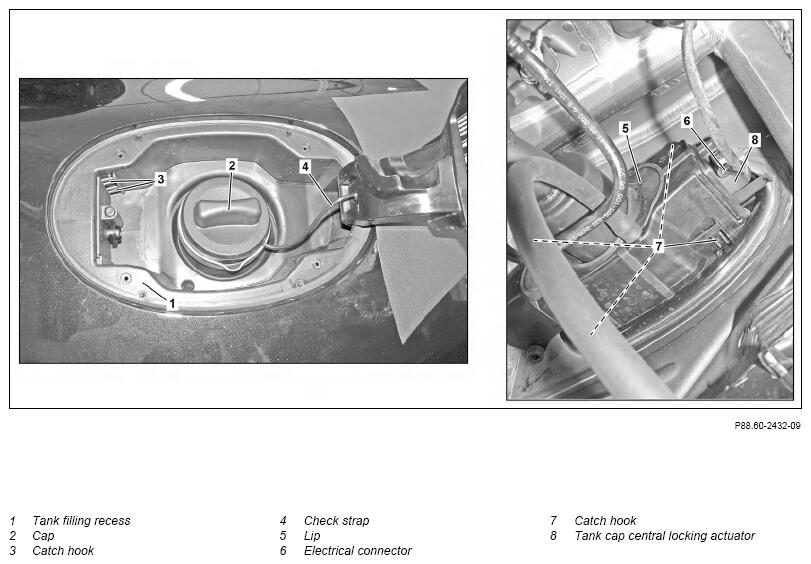

| 5 | Unclip tank cap central locking actuator (8) from catch hooks (3), disconnect electrical connector (6) and remove tank cap central locking actuator (8) | ||
| 6 | Unscrew cap (2) | ||
| 7 | Unclip check strap (4) from hinge and remove cap (2) from check strap (4) | ||
| 8 | Unclip catch hook (7) from inside | ||
| 9 | Pull sealing lip (5) over filler neck | ||
| 10 | Remove tank filler recess (1) from rear under | ||
| 11 | Install in the reverse order |
