Remove/Install Remote Trunk Closing Button - AR88.50-P-5075LF
Model 217
Model 222
with code 881 (Remote boot-lid closing)

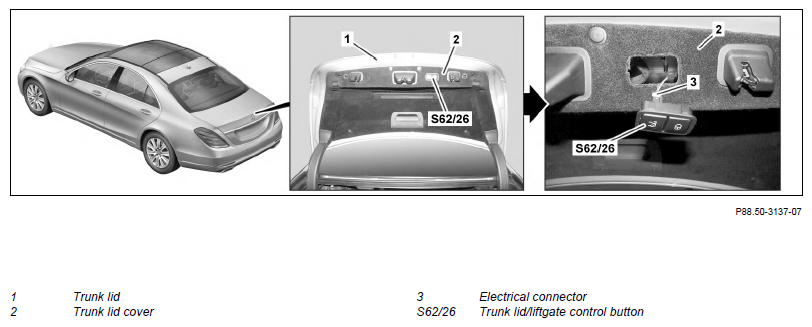

Shown on model 222 with code (889) KEYLESS-GO
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Open trunk lid (1) | ||
| 2 | Unclip trunk lid/liftgate control button (S62/26) from trunk lid paneling (2) | Fig 1 | |
| 3 | Release and disconnect electrical plug (3) | ||
| 4 | Remove trunk lid/liftgate control button (S62/26) | ||
| 5 | Install in the reverse order |
