Remove/Install Tire Pressure Monitoring Control Unit - AR40.15-P-0101ME
Model 167
with code 475 (Tire pressure monitoring system)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of tire pressure monitoring system control unit (N88). | If the tire pressure monitoring system control unit (N88) is replaced. | |
| AD00.00-P-2000-06ME | |||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (at least 2 m). | ||

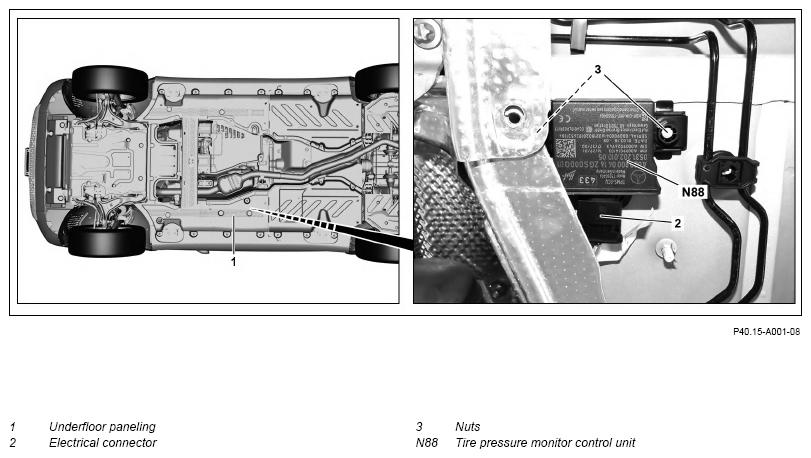

| 3 | Remove underfloor paneling (1) on right side. | AR61.30-P-1001ME | |
| 4 | Release and disconnect electrical connector (2). | ||
| 5 | Unscrew nuts (3). | Do not screw on new nuts (3), but press them on until they contact. Otherwise, the nuts (3) become damaged. |
|
| 6 | Remove tire pressure monitoring system control unit (N88). | ||
| 7 | Install in the reverse order. | ||
| 8 | Activate tire pressure monitoring system using instrument cluster. | AR54.30-P-1001-01FR |
