Remove/Install Alternator - AR15.40-P-5032MNB
Engine 178 In Model 190
| Remove/install | |||
| 1 | Remove ground line of battery. | AR54.10-P-0003RG | |
| 2 | Remove bottom Engine compartment lining. | Engine 178 in model 190.381 | AR61.20-P-1105RGB |
| Engine 178 in model 190 (except 190.381) | AR61.20-P-1105RG | ||
| 3 | Turn clamping device for poly-V-belt (2) counterclockwise and lock with a suitable drift. | Do not use belt wax or similar products. This leads to slipping of poly-V-belt (2). |

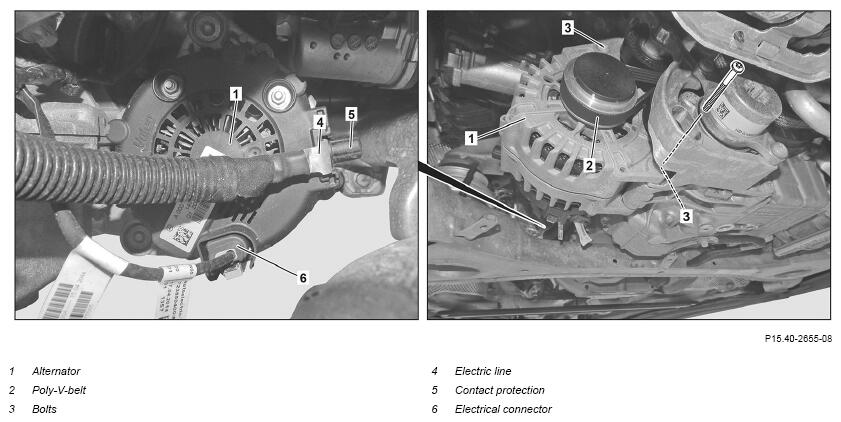

AR13.22-P-3902-02MNA |
| 4 | Remove poly-V-belt (2) from alternator (1). | ||
| 5 | Turn clamping device for poly-V-belt (2) counterclockwise, pull out drift and release clamping device for poly-V-belt (2). | ||
| 6 | Remove contact protection (5). | ||
| 7 | Detach electric line (4) from alternator. | *BA15.40-P-1003-01T | |
| 8 | Disconnect electrical connector (6) from alternator (1). | ||
| 9 | Remove screws (3). | *BA15.40-P-1001-01T | |
| 10 | Remove alternator (1) downward. | ||
| 11 | Install in the reverse order. |
ALTERNATOR
| Number | Designation | Engine 178 | |
|---|---|---|---|
| BA15.40-P-1001-01T | Bolt, alternator to alternator bracket | Nm | 20 |
ALTERNATOR
| Number | Designation | Engine 178 | |
|---|---|---|---|
| BA15.40-P-1003-01T | Nut, positive line to alternator | Nm | 16 |
