Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MNL
Engine 176.9, 177.9 in model 217
Engine 176.9, 177.9 in model 222
Engine 177.9 in model 290
up to model year 2021

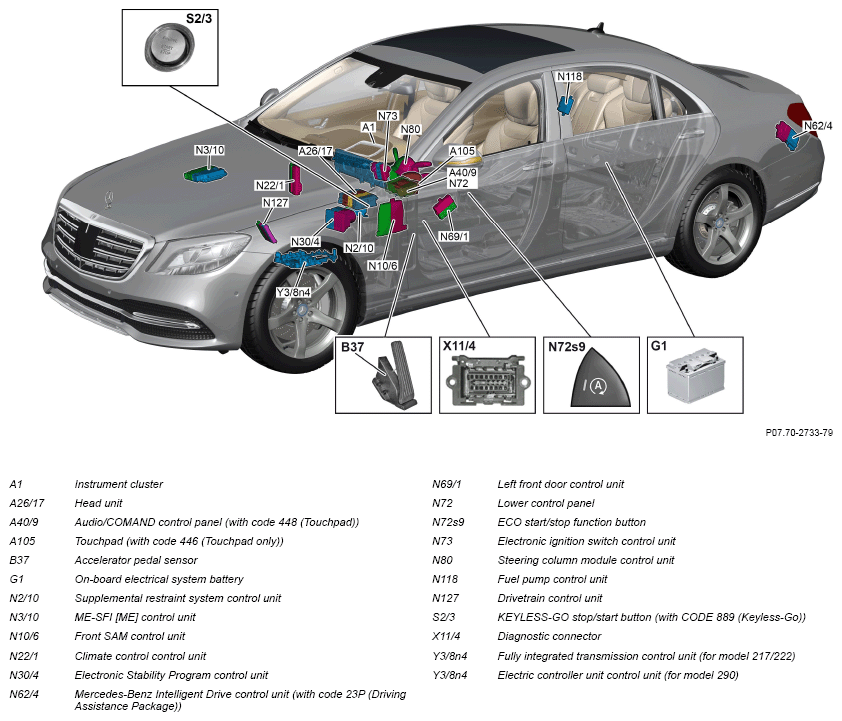

Vehicle view from front left (shown on model 222.0)

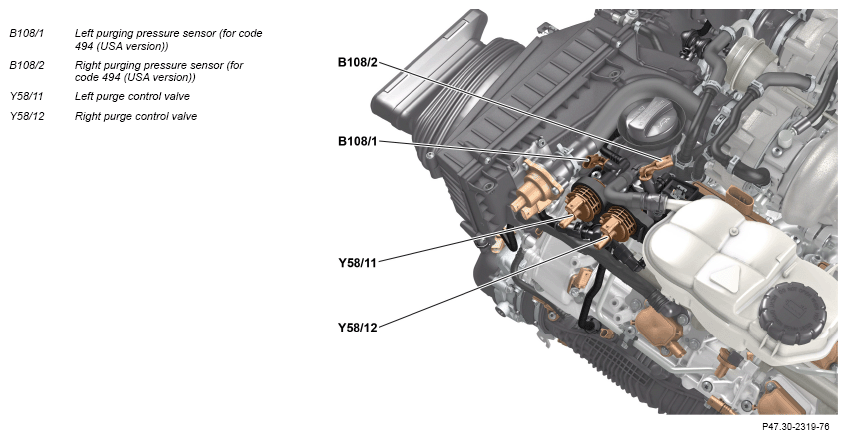

View from top front (for engine 177.9)
View from top front (for engine 177.9)

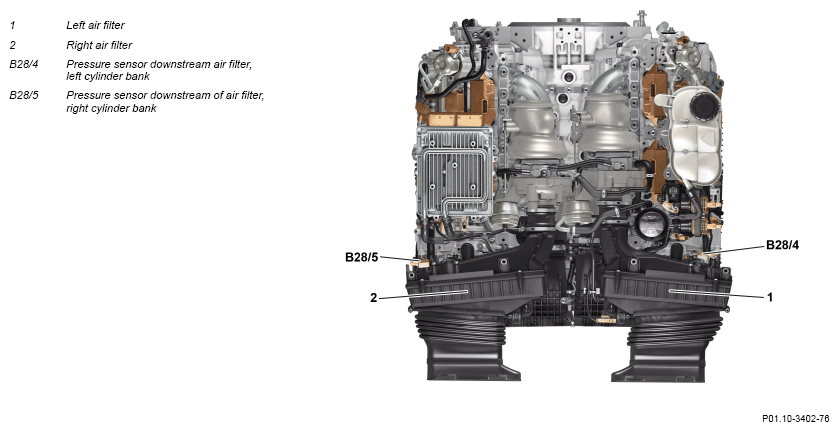

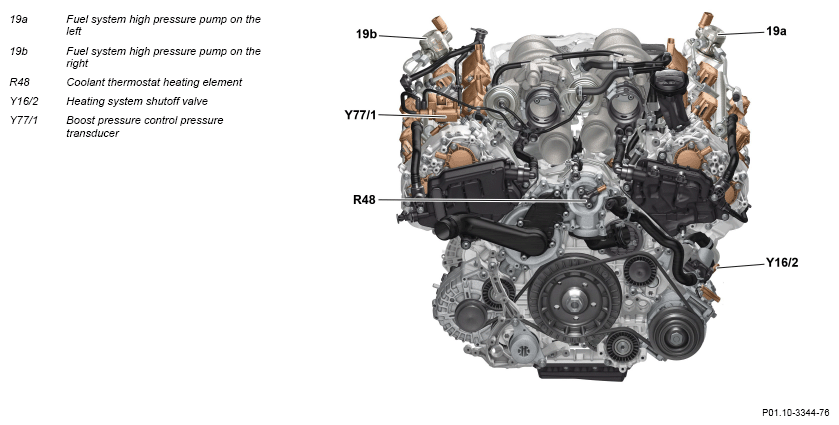

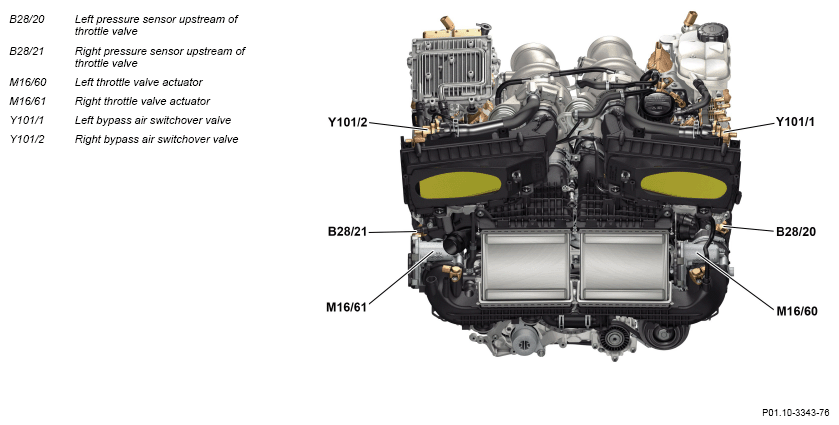

View from the front (for engine 177.9)

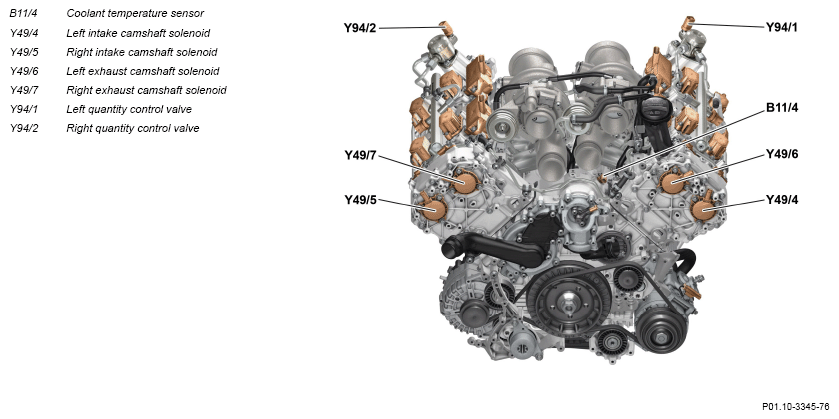

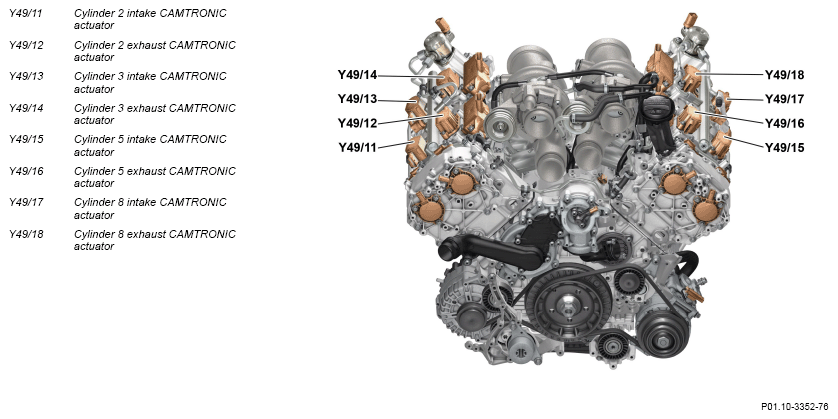

View from the front (for engine 177.9)

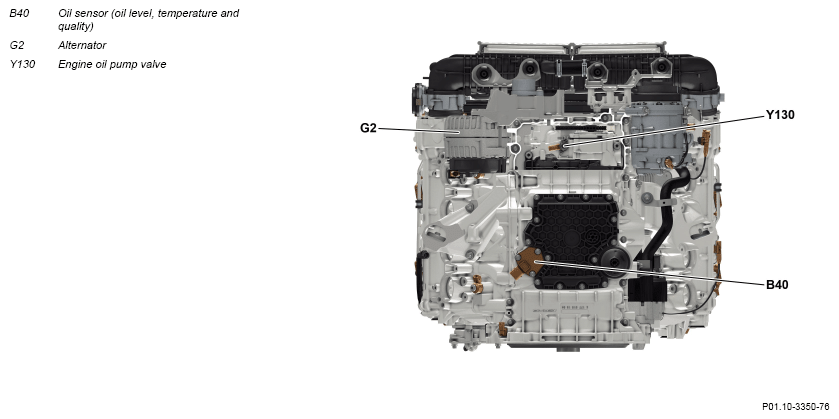

View from the front (for engine 177.9)

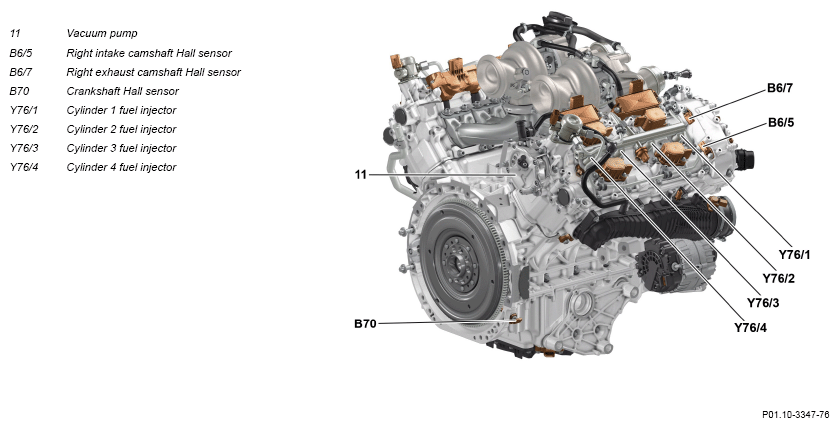

View from the right (for engine 177.9 with code M005 (4MATIC))
View from right rear (for engine 177.9 with code M005 (4MATIC))

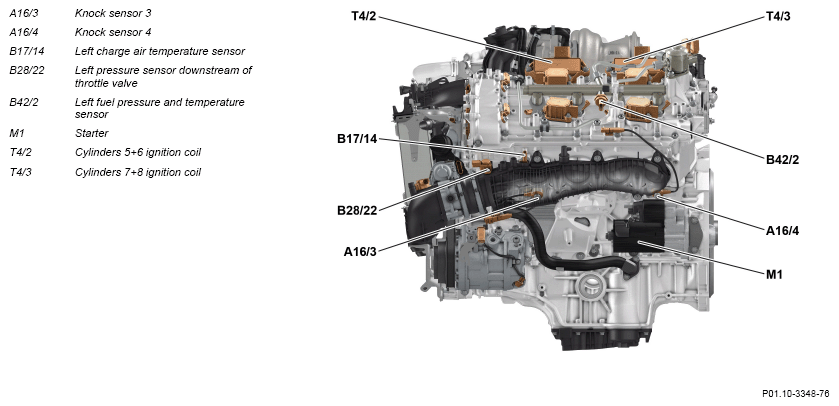

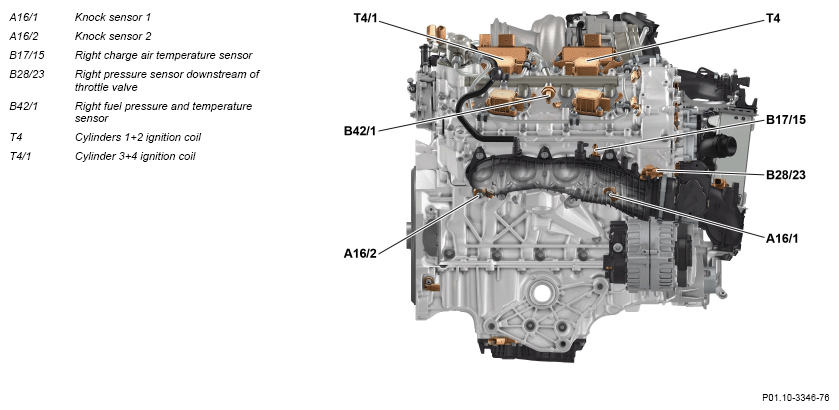

View from the left (for engine 177.9 with code M005 (4MATIC))

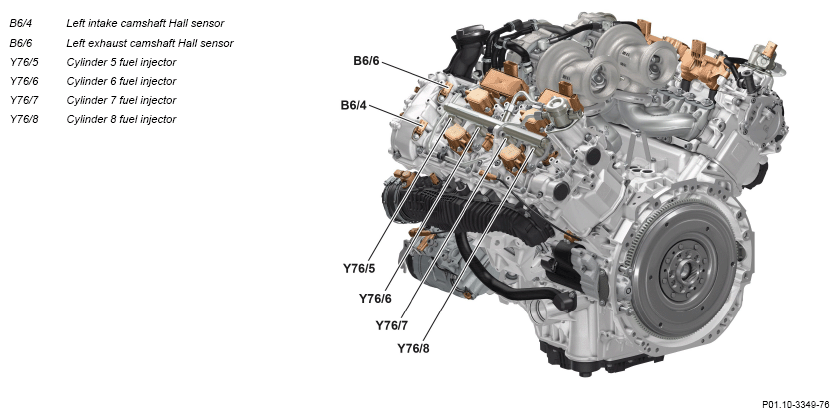

View from left rear (for engine 177.9 with code M005 (4MATIC))
View from below (for engine 177.9)

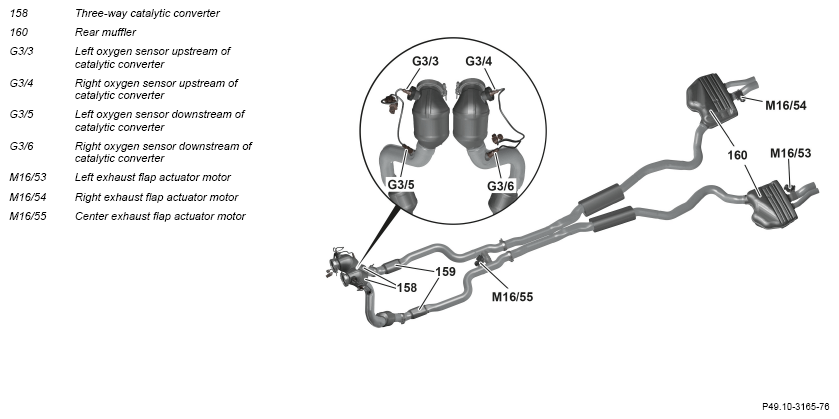

Shown: exhaust system (for engine 177.9)
In case of engine 176, center exhaust-gas flap actuator motor is omitted.
View from top front (shown for engine 177.9)

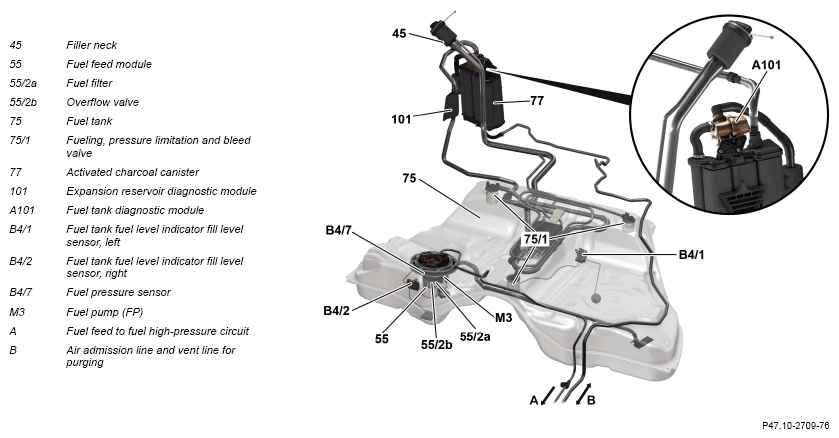

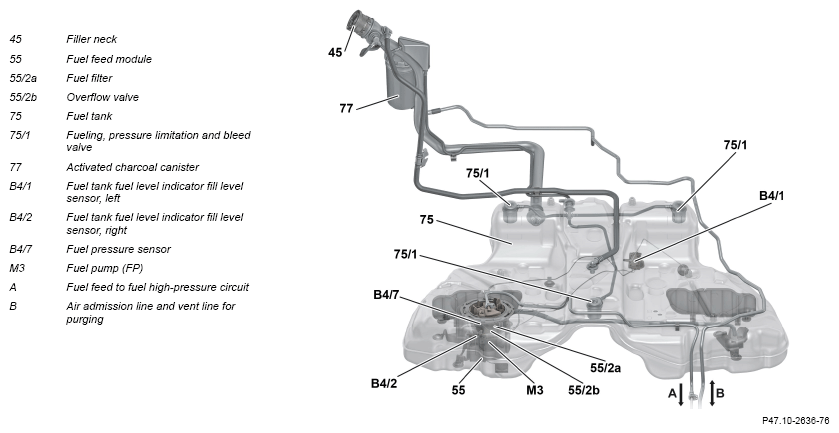

Phantom view of the fuel tank (except code 494 (USA version))
Phantom view of fuel tank (with CODE 494 (USA version))

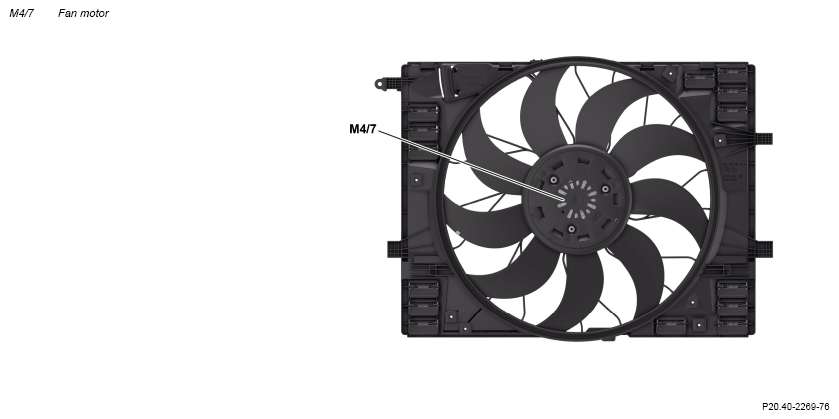

View of the radiator from the rear

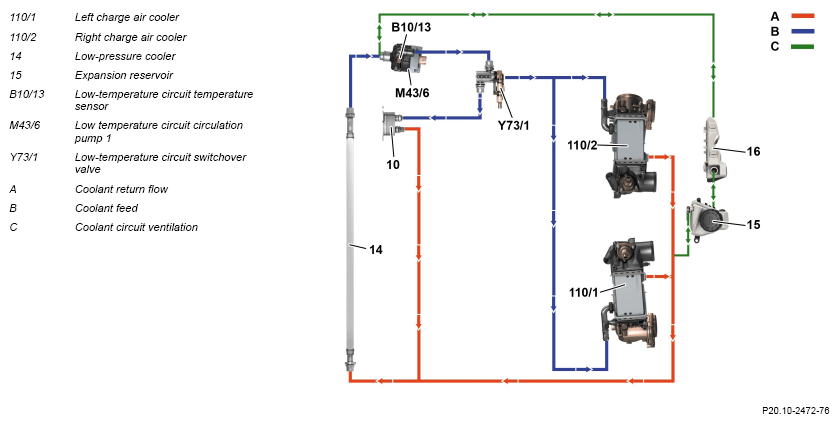

Low temperature circuit view (for engine 176.9)

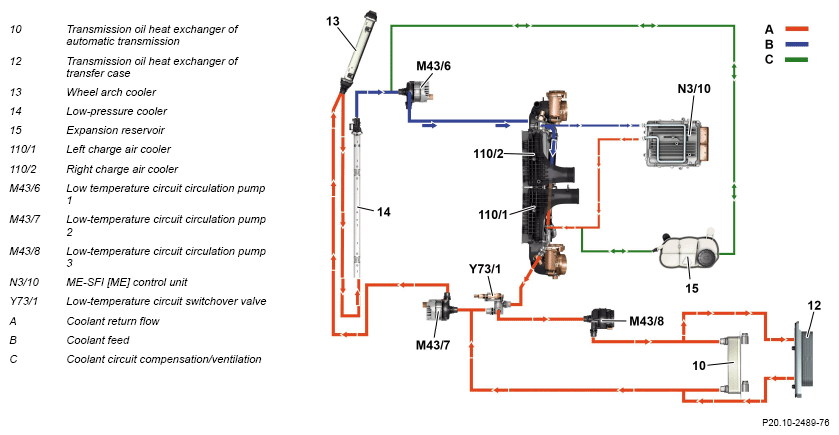

Low-temperature circuit view (for engine 177.9)

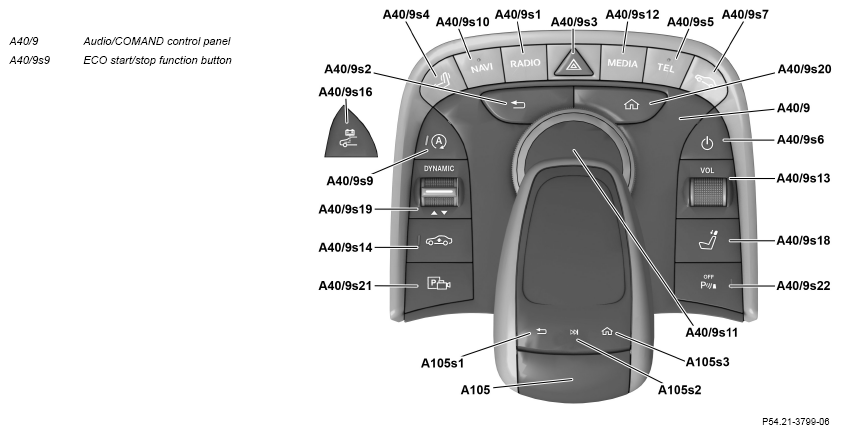

Shown: Audio/COMAND control panel in the center console (with code 448 (touchpad))

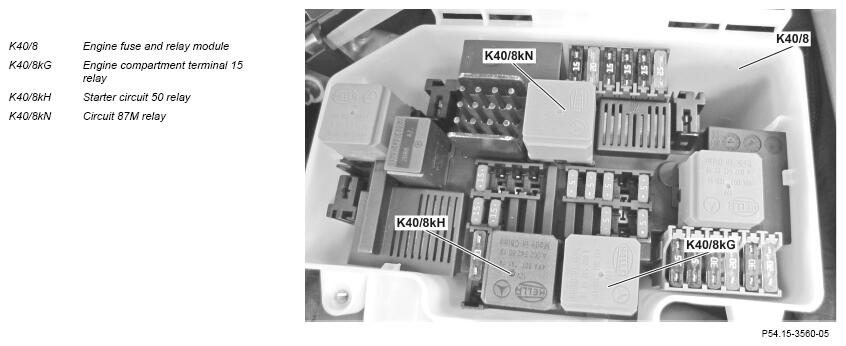

View of engine fuse and relay module in engine compartment at the rear left
| Component description for instrument cluster | Engine 176.9, 177.9 in model 222 as of model year 2018 A1 |
GF54.30-P-6000LFM | |
| Head unit, component description | Engine 176.9, 177.9 in model 222 as of model year 2018 A26/17 |
GF82.85-P-3140LFM | |
| Component description for Audio/COMAND control panel | Engine 176.9, 177.9 in model 222 as of model year 2018 with code 448 (Touchpad) A40/9 |
GF54.21-P-4501LFM | |
| Touchpad, component description | Engine 176.9, 177.9 in model 217 with code 448 (Touchpad) Engine 176.9, 177.9 in model 222 with code 448 (Touchpad) A105 |
GF54.21-P-4511LF | |
| Supplemental restraint system control unit, component description | Engine 177.9 in model 290 up to model year 2021 N2/10 |
GF91.60-P-4080FR | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MNL | |
| Component description for front SAM control unit | Engine 177.9 in model 290 up to model year 2021 N10/6 |
GF54.21-P-7010FR | |
| Climate control control unit, component description | Engine 177.9 in model 290 up to model year 2021 N22/6 |
GF83.40-P-2250FR | |
| Component description for Electronic Stability Program control unit | Model 217, 222 with engine 176.9, 177.9 as of model year 2018 N30/4 |
GF42.45-P-5119LFM | |
| Mercedes-Benz Intelligent Drive control unit, component description | Engine 176.9, 177.9 in model 222 as of model year 2018 with code 23P (Drive package) N62/4 |
GF30.30-P-3312LFM | |
| Component description for left front door control unit | Engine 177.9 in model 290 up to model year 2021 N69/1 |
GF72.29-P-6001FR | |
| Lower control panel, component description | Engine 176.9, 177.9 in model 217 with code 446 (Touchpad only) Engine 176.9, 177.9 in model 222 with code 446 (Touchpad only) N72 |
GF54.25-P-4270LFM | |
| Engine 177.9 in model 290 up to model year 2021 N72 |
GF54.25-P-4270FR | ||
| Component description for the electronic ignition lock control unit | Engine 176.9, 177.9 in model 217 Engine 176.9, 177.9 in model 222 N73 |
GF80.57-P-6001LF | |
| Engine 177.9 in model 290 up to model year 2021 N73 |
GF80.57-P-6001FR | ||
| Component description for steering column tube module control unit | Engine 176.9, 177.9 in model 222 as of model year 2018 N80 |
GF54.21-P-6051LFM | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MMK | |
| Drivetrain control unit, component description | N127 | GF54.21-P-2141LF | |
| Component description for fully integrated transmission control unit | Model 217, 222 with engine 177.9 with transmission 725.066/096 Y38n4 |
GF27.60-P-5165ANQ | |
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MNL |
