Remove/Install Fuel Pump - AR47.20-P-5710MSC

Model 167 with engine 176, 177, 256.9, 264, 274.9

Shown with code 228 (auxiliary heating)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on model 167 with engine 256.9

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove fuel tank.	Model 167 with engine 274.9	AR47.10-P-4100MRM
		Model 167 with engine 176, 177, 256.9, 264	AR47.10-P-4100MSC

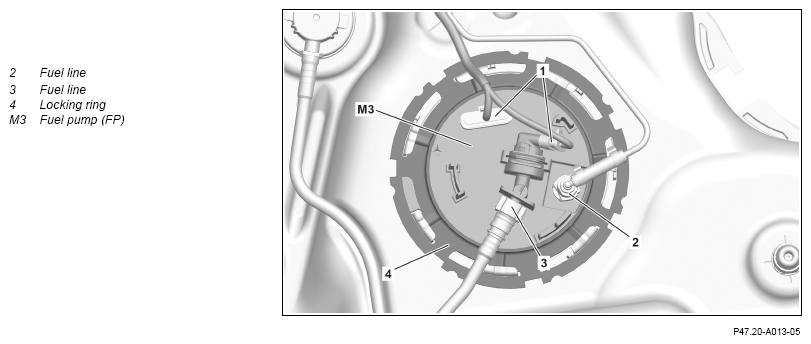

2	Remove fuel line (2) from fuel pump (M3) and seal openings with suitable stop plugs.	Model 167 with engine 176, 177, 256.9, 264 with code 228 (Additional warm water heating) Do not kink, crush, or twist fuel line (2) or route it in tight radii. The fuel line (2) will otherwise be damaged.
		Record plug	Fig 2
3	Remove fuel line (3) from fuel pump (M3) and seal openings with suitable stop plugs.	Do not kink, crush, or twist fuel line (3) or route it in tight radii. Otherwise the fuel line (3) can be damaged.
		Record plug	Fig 2
4	Remove locking ring (4).	Claw-type wrench	Fig 1

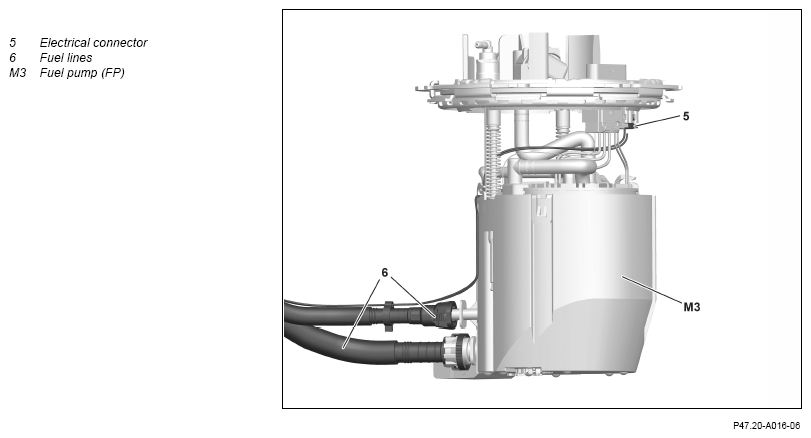

5	Lift fuel pump (M3) until electrical connector (5) and fuel lines (6) are accessible.
6	Release and disconnect electrical connector (5) and expose electric line.

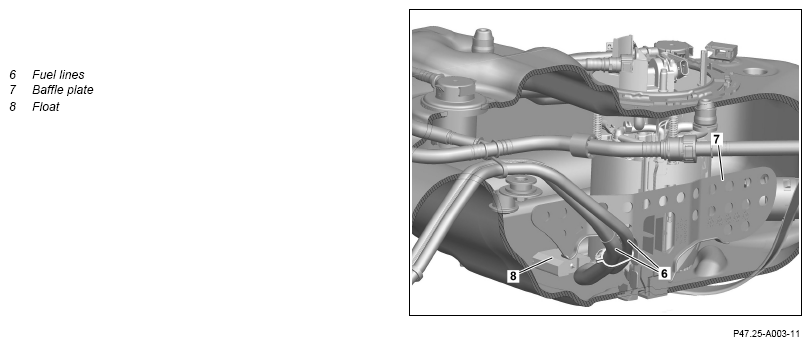

7	Remove fuel lines (6).	Route fuel lines (6) through cutout of baffle plate (7). Risk otherwise exists that movement of float (8) will be blocked.
8	Remove fuel pump (M3) and collect escaping fuel with absorbent rags.	Replace sealing ring.
9	Clean contact surfaces of the sealing ring on the fuel tank and on the fuel pump (M3).	Assembly cleaner	*BR00.45-Z-1028-04A
10	Install in the reverse order.
11	Read out and delete fault memory.
			AD00.00-P-2000-06ME

Fig 1: Identifying Claw-Type Wrench (001 589 00 07 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
