Remove/Install Fuel Injection System Engine Wiring Harness - AR15.18-P-0003MSC
Engine 256.9 In Model 167
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Disconnect ground line from battery. | AR54.10-P-0003ME | |
| 2 | Remove upper Engine cover. | AR01.10-P-2405MSC | |

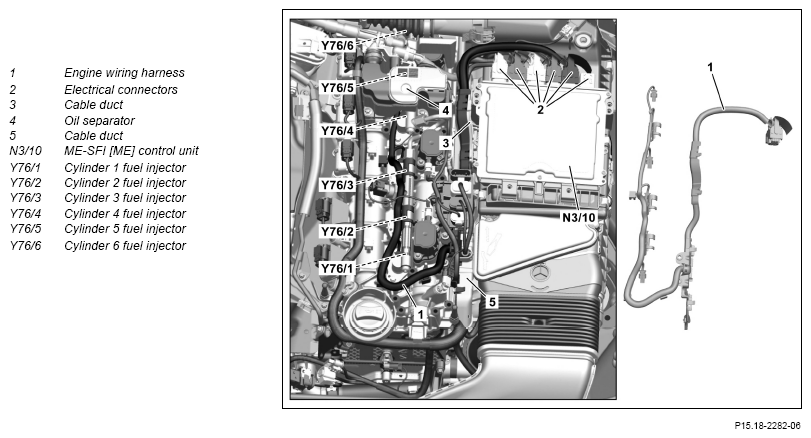

| 3 | Release and disconnect the electrical connectors (2). | ||
| 4 | Remove the oil separator (4). | AR01.20-P-9750MSC | |
| 5 | Remove air filter housing. | AR09.10-P-1150MSC | |
| 6 | Remove Engine air intake duct downstream of air filter. | AR09.10-P-8130MSC | |
| 7 | Remove rear noise insulation. | ||
| 8 | Remove the Engine wiring harness (1) from cable duct (3). | ||
| 9 | Remove potential distributor from cylinder head cover. | *BA15.18-P-1003-01MRT | |
| 10 | Remove Engine wiring harness (1) from cylinder head cover and rail. | *BA15.18-P-1002-01MRT | |
| 11 | Remove cable duct (5) from Engine wiring harness (1). | ||
| 12 | Release and disconnect electrical connectors of fuel injectors cylinder 1 to 6 (Y76/1 to Y76/6). | ||
| 13 | Unclip and remove Engine wiring harness (1). | ||
| 14 | Install in the reverse order. | ||
| Check | |||
| 15 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06ME |
12 V ON-BOARD ELECTRICAL SYSTEM ENGINE WIRING HARNESS
| Number | Designation | Engine 256 | |
|---|---|---|---|
| BA15.18-P-1002-01MRT | Screw, Engine wiring harness cable duct to camshaft housing | Nm | 8 |
12 V ON-BOARD ELECTRICAL SYSTEM ENGINE WIRING HARNESS
| Number | Designation | Engine 256 | |
|---|---|---|---|
| BA15.18-P-1003-01MRT | Screw, Engine wiring harness potential distributor to camshaft housing | Nm | 8 |
