Remove/Install Crankshaft Hall Sensor - AR15.12-P-2136MSC
Engine 256.9 In Model 167
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

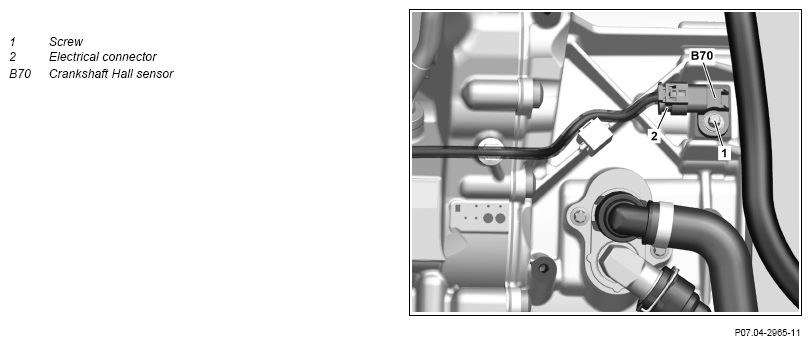

| 1 | Remove rear bottom Engine compartment lining. | AR61.20-P-1105ME | |
| 2 | Remove left 48 V wiring harness bracket from crankcase and place to one side. | *BA00.10-P-1002-04A | |
| 3 | Release and disconnect electrical connector (2). | ||
| 4 | Remove screw (1). | *BA15.10-P-1001-03I | |
| 5 | Remove crankshaft Hall sensor (B70). | ||
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06ME | |||
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out engine test run and check engine for proper leaktightness and leaktightness. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
POSITION SENSOR
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA15.10-P-1001-03I | Bolt, position sensor for crankshaft to crankcase/oil pan | Nm | 7 |
