Remove/Install Automatic Running Boards Control Unit - AR88.30-P-0018MEM
Model 167.9
With Code M036 (Maybach version)
Shown without code 856 (telephone handset in rear armrest)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove floor covering in the rear passenger compartment. | AR68.80-P-0003ME | |
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3 | Place dampings near the automatic running board control unit (N172) to one side. | ||
| 4 | Remove the antenna amplifier/compensator for the rear passenger compartment mobile phone network. | Model 167.9 with code 224 (Rear individual seat design) with code 856 (Telephone handset in rear armrest) with code M036 (Maybach version) |
AR82.62-P-0028MEM |

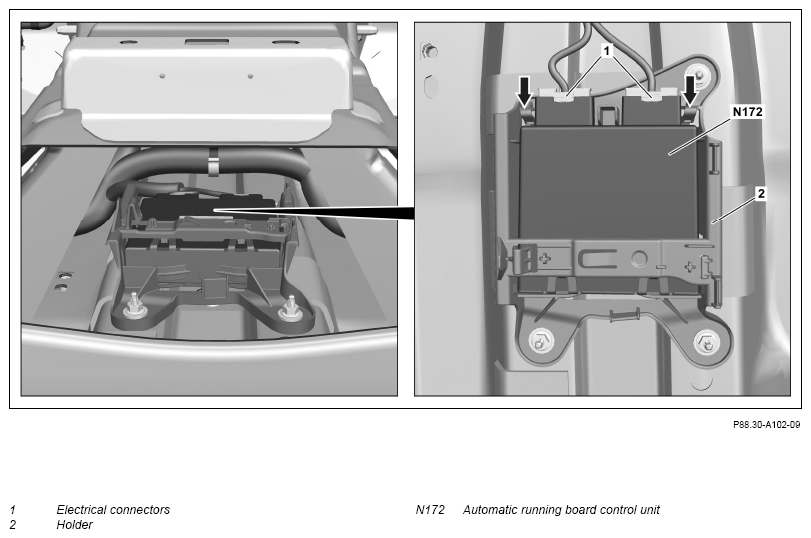

| 5 | Release and disconnect electrical connections (1). | ||
| 6 | Unlatch the automatic running board control unit (N172) (arrows), pull out of the holder (2), and remove. | ||
| 7 | Install in the reverse order. |
