Overview Of System Components For Climate Control - GF83.40-P-9994FG
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213 up to model year 2021

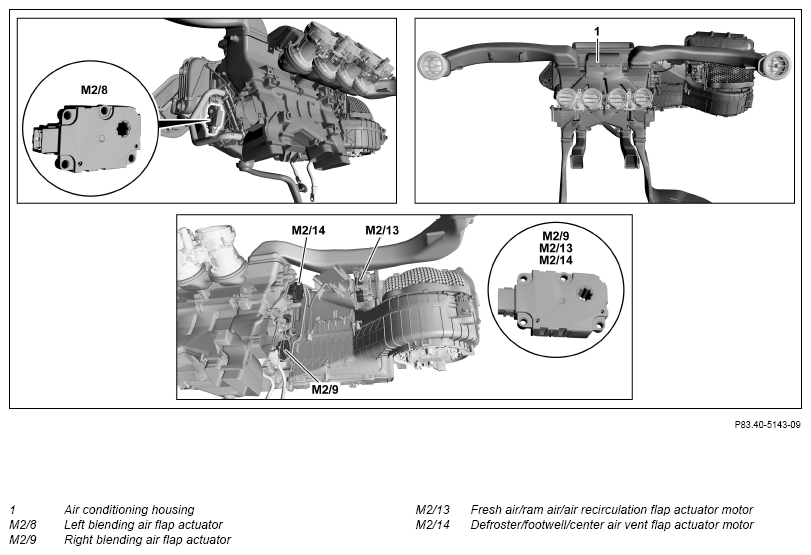

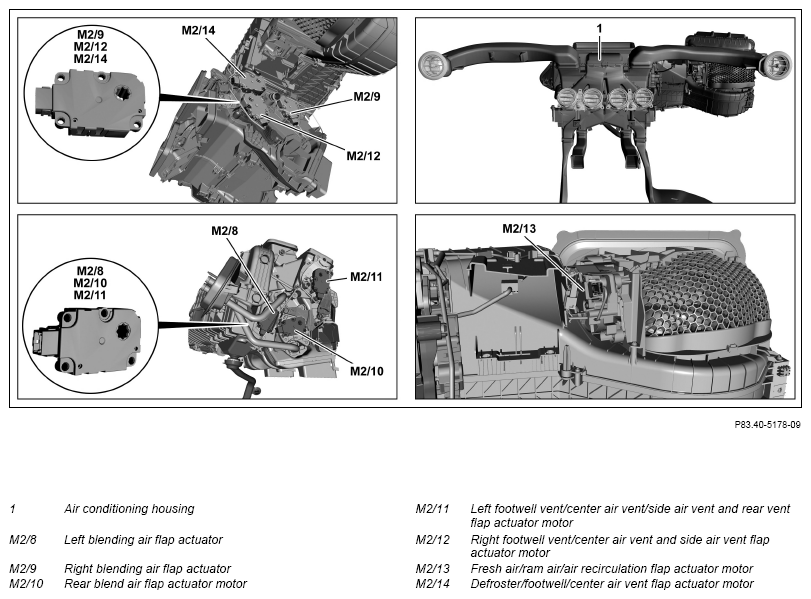

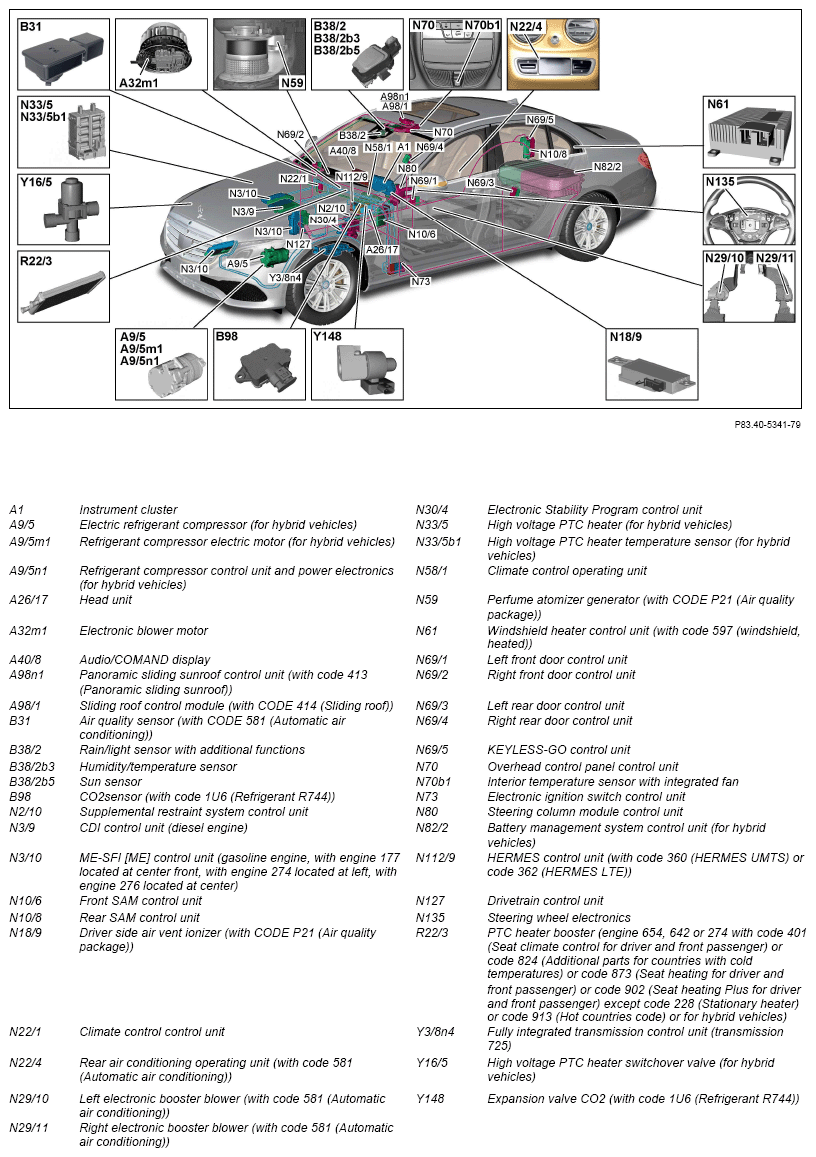

Networked components, shown on model 213.0

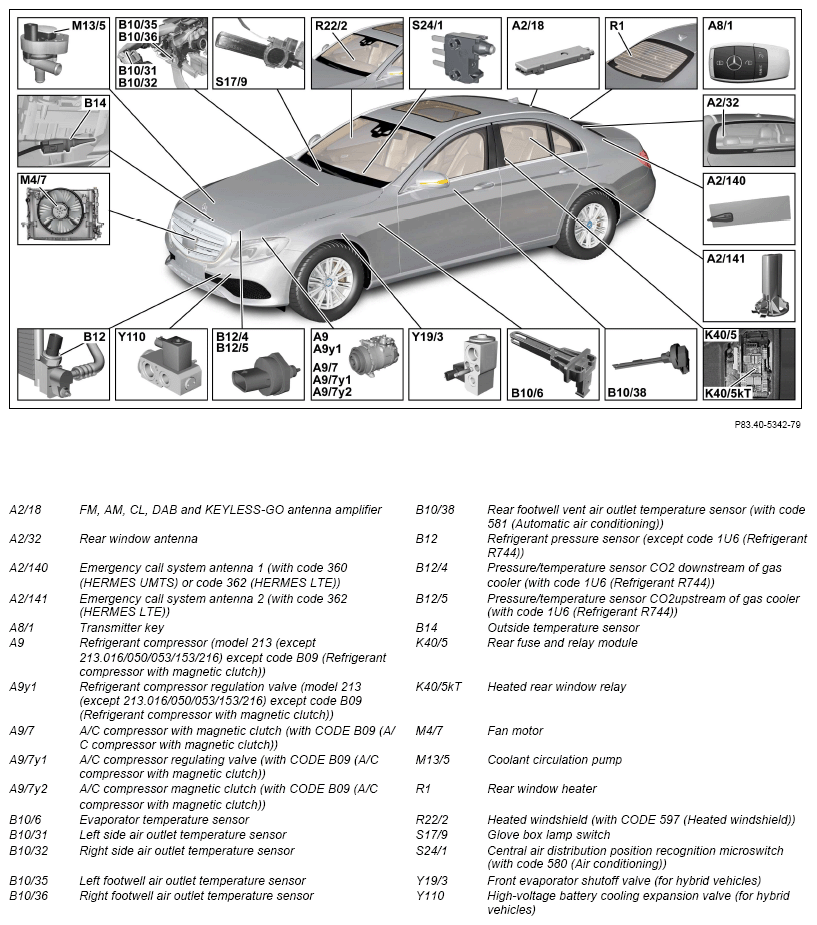

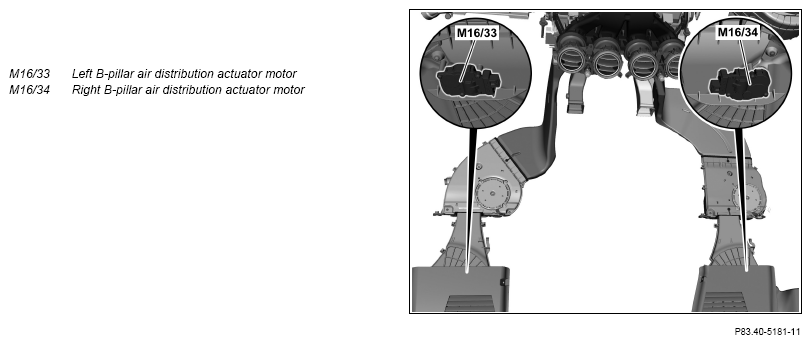

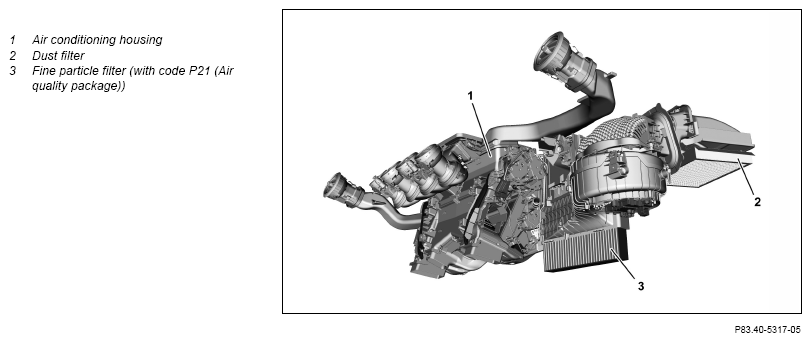

Non-networked components, shown on model 213.0
Model 213 (except 213.016/050/053/153/216) with code 581 (Automatic air conditioning), shown with code 228 (Stationary heater)

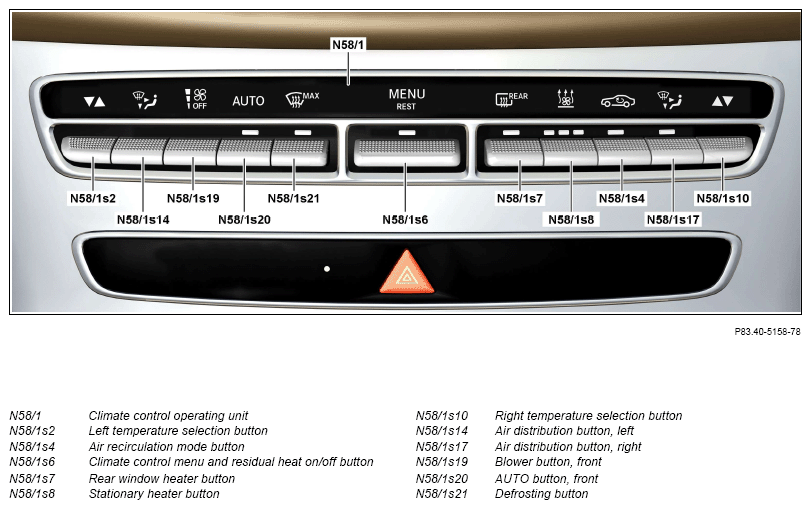

The following buttons are not part of this climate control operating unit:
- Heated windshield button (N58/1s5) (with code 597 (Heated windshield))
- "SYNC" button (N58/1s15) (with code 580 (Air conditioning) or code 965 (Taxi/rental car preinstallation))
- "A/C" button (N58/1s16) (with code 580 (Air conditioning system) or code 581 (Automatic air conditioning) or for hybrid vehicles)
- "A/C" and residual heat ON/OFF button (N58/1s18) (with code 965 (Taxi/rental car preinstallation))
- Air distribution button (N58/1s22) (with code 580 (Air conditioning) or code 965 (Taxi/rental car pre-installation) or for hybrid vehicles)
- Auxiliary climate control button (N58/1s23) (for hybrid vehicles)
- "OFF" and climate control menu button (N58/1s25) (with code 580 (Air conditioning) or code 965 (Taxi/rental car preinstallation))
With code 580 (Air conditioning)
With code 581 (Automatic air conditioning)
With code 581 (Automatic air conditioning)
| Component description for instrument cluster | A1 | GF54.30-P-6000FG | |
| Component description for electric refrigerant compressor | Model 213 (except 213.016/050/053/054/216) up to model year 2021 with code B01 (48V technology) | GF83.55-P-2110FG | |
| Model 213.016/050/053/054/216 up to model year 2021 A9/5 | |||
| Head unit, component description | Model 213 up to model year 2021 with code 520 (Audio 20 USB) except code 506 (Audio 20 NTG 5.5 radio) except code 522 (Audio 20 radio) except code 531 (COMMAND APS) A26/17 | GF82.85-P-3140FG | |
| Model 213 up to model year 2021 with code 522 (Audio 20 radio) except code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 531 (COMMAND APS) A26/17 | GF82.85-P-3140FGA | ||
| Model 213 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) | GF82.85-P-3140FGB | ||
| Model 213 up to model year 2021 with code 531 (COMMAND APS) A26/17 | |||
| Component description for Audio/COMMAND display | A40/8 | GF54.30-P-6150FG | |
| Component description for panoramic sliding roof control module | Model 213 up to model year 2021 with code 413 (Panoramic sliding sunroof/glass roof) A98n1 | GF77.20-P-4106FG | |
| Component description for sliding roof control module | Model 213 up to model year 2021 with code 414 (Electric sunroof, glass version) A98/1 | GF77.20-P-4108FG | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005FG | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FG | |
| Component description for CDI control unit | Model 213 with engine 642.8 up to model year 2021 N3/9 | GF07.16-P-6000OGW | |
| Model 213 (except 213.016/216) with engine 654.9 up to model year 2021 N3/9 | GF07.16-P-6000ORC | ||
| Model 213.016/216 with engine 654.9 up to model year 2021 N3/9 | GF07.16-P-6000ORE | ||
| Model 213 with engine 656.9 up to model year 2021 N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 213 with engine 177.9 up to model year 2021 N3/10 | GF07.61-P-6000MNA | |
| Model 213 (except 213.050/053/153) with engine 274.9 up to model year 2021 N3/10 | GF07.61-P-6000MRD | ||
| Model 213.050/053/153 with engine 274.9 up to model year 2021 N3/10 | GF07.61-P-6000MRP | ||
| Model 213 with engine 276.8 up to model year 2021 N3/10 | GF07.61-P-6000MND | ||
| Model 213 with engine 264.9 up to model year 2021 N3/10 | GF07.61-P-6000MRG | ||
| Model 213 with engine 256.9 up to model year 2021 N3/10 | GF07.61-P-6000MRT | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FG | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FG | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250FG | |
| Rear climate control operating unit, component description | Model 213 up to model year 2021 with code 581 (Automatic air conditioning) N22/4 | GF83.40-P-3050FG | |
| Component description for Electronic Stability Program control unit | Model 213 (except 213.016/050/053/153/216) up to model year 2021 N30/4 | GF42.45-P-5119FG | |
| Model 213.053 with engine 274.9 up to model year 2021 N30/4 | GF42.45-P-5119FGH | ||
| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260FG | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FG | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FG | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FG | |
| Component description for KEYLESS-GO control unit | N69/5 | GF80.61-P-4204FG | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216FG | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FG | |
| Component description for steering column tube module control unit | Model 213 up to model year 2019 N80 | GF54.21-P-6051FG | |
| Model 213 as of model year 2019 up to model year 2021 N80 | GF54.21-P-6051FGA | ||
| Component description for battery management system control unit | Model 213.016/216 with engine 654.920 up to model year 2021 | GF54.10-P-3012FGH | |
| Model 213.050 with engine 274.9 up to model year 2021 Model 213.053 with engine 274.920 up to model year 2021 N82/2 | |||
| HERMES control unit, component description | Model 213 up to model year 2021 with code 360 (HERMES UMTS) | GF82.85-P-0221FG | |
| Model 213 up to model year 2021 with code 362 (HERMES communications module LTE) N112/9 | |||
| Drivetrain control unit, component description | Model 213 with engine 177.9 up to model year 2021 N127 | GF54.21-P-2141MNA | |
| Model 213 with engine 264.9, 274.9, 276.8 up to model year 2021 N127 | GF54.21-P-2141MRP | ||
| Model 213 (except 213.016/216) with engine 654.9 up to model year 2021 | GF54.21-P-2141ORC | ||
| Model 213 with engine 642.8 up to model year 2021 N127 | |||
| Model 213 with engine 256.9 up to model year 2021 N127 | GF54.21-P-2141LF | ||
| Model 213.016/216 with engine 654.9 up to model year 2021 N127 | GF54.21-P-2141ORE | ||
| Model 213 with engine 656.9 up to model year 2021 N127 | GF54.21-P-2141OGS | ||
| Steering wheel electronics control unit, component description | Model 213 as of model year 2019 up to model year 2021 N135 | GF82.90-P-4006FG | |
| Component description for fully integrated transmission control unit | Model 213 with transmission 725.007/017 up to model year 2021 Y38n4 | GF27.60-P-5165AHU | |
| Model 213 with transmission 725.0 (except 725.007/017/096) up to model year 2021 Y38n4 | GF27.60-P-5165ANL | ||
| Model 213 with transmission 725.096 up to model year 2021 Y38n4 | GF27.60-P-5165ANO | ||
| Table of contents for climate control function description | GF83.40-P-0994FG |
