Remove/Install Triangular Window - AR67.30-P-2560ME
Model 167
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove corresponding side window seal from the rear door. | AR72.12-P-0001ME | |

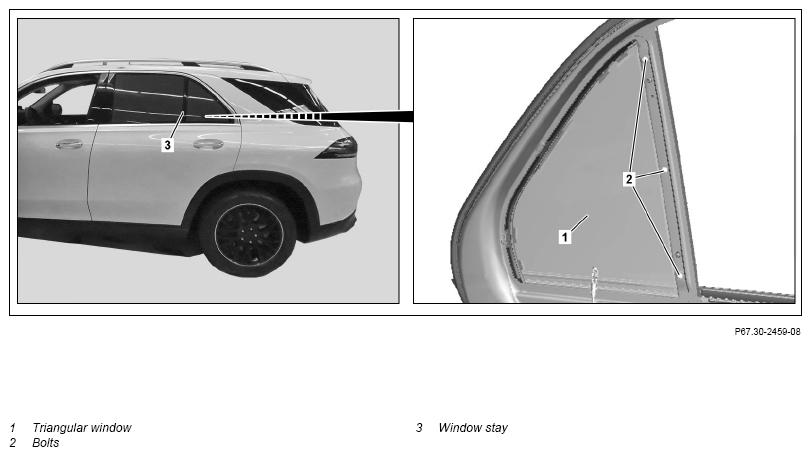

| 2 | Remove screws (2) from the window divider (3). | ||
| 3 | Remove window divider (3). | ||
| 4 | Remove triangular window (1). | When inserting the triangular window (1), ensure that the seal is not damaged. Otherwise noises from water entry can occur. |
|
| Lubricant, rubber assembly 1 L | *BR00.45-Z-1010-06A | ||
| 5 | Install in the reverse order. |
REPAIR MATERIAL
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
