Remove/Install Brake Pedal - AR29.10-P-4597MFA
Model 118, 177, 247
with code 411 (6-speed manual transmission)
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||

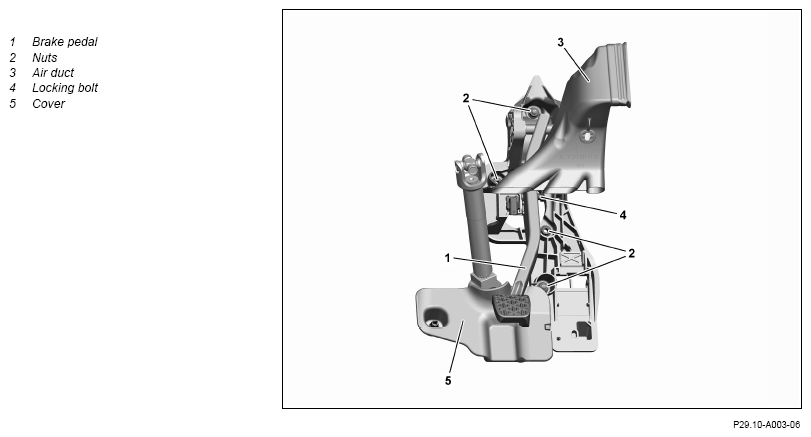

| 1 | Remove accelerator pedal. | AR30.12-P-1321MFA | |
| 2 | Remove cover (5). | ||
| 3 | Remove trim at bottom for instrument panel or driver's side. | AR68.10-P-1501MFA | |
| 4 | Remove air duct (3) in driver footwell. | ||
| 5 | Release and disconnect electrical connector of brake light switch (S9/1). | ||
| 6 | Remove electrical wiring harness from brake pedal (1). | ||
| 7 | Remove safety screw (4). | *BA43.10-P-1002-01L | |
| 8 | Unscrew nuts (2). | *BA29.10-P-1001-02L | |
| 9 | Remove brake pedal (1) from driver footwell. | ||
| 10 | Transfer brake light switch (S9/1). | When replacing the brake pedal. | |
| 11 | Install in the reverse order. |
PEDALS, BEARING BRACKET
| Number | Designation | Model 118 | Model 177, 243, 247 | ||
|---|---|---|---|---|---|
| BA29.10-P-1001-02L | Nut, pedal assembly to firewall | M6 | Nm | 14 | 14 |
| M8 | Nm | 22 | 22 | ||
PNEUMATIC BRAKE BOOSTER
| Number | Designation | Model 118 | Model 177, 243, 247 | |
|---|---|---|---|---|
| BA43.10-P-1002-01L | Bolt, brake pedal brake booster retaining bolt | Nm | 22 | 22 |
