Remove/Install Throttle Valve Actuator - AR07.61-P-1401MFC

Engine 260 in model 118, 177, 247

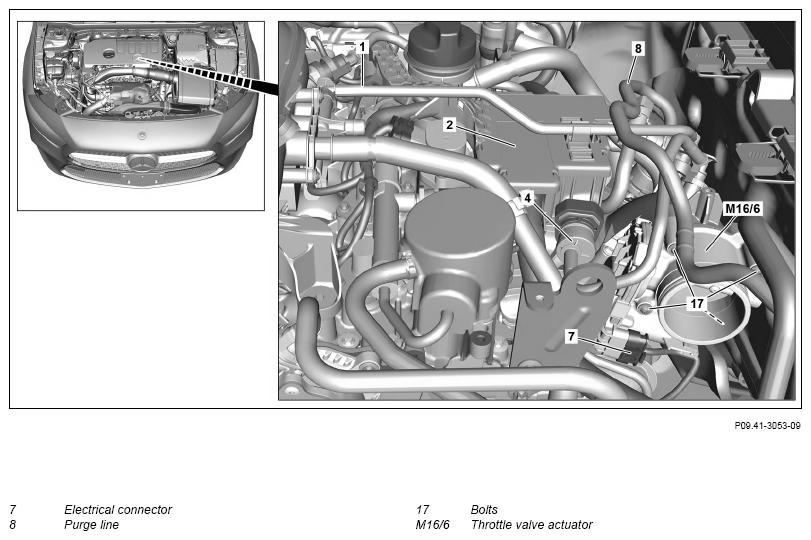

Fig 1: Throttle Valve Actuator Components Location - Engine 260 In Model 247 (Shown On Model 177 Without Code M016)

Courtesy of MERCEDES-BENZ USA

Shown on model 177 with engine without code M016 (Performance-enhanced engine)

	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove upper engine cover.
			AP01.10-P-2405-01C
		Only install upper engine cover after the leak test.
2.1	Remove top part of the charge air pipe from the charge air cooler to the charge-air distributor.	Engine 260 in model 118, 177, 247 except code M016 (Uprated engine)
			AR09.41-P-1331MFC
		Do not subject purge line (8) to tensile loads, crush or kink it. Purge line (8) will otherwise be damaged. Replace sealing ring between charge air pipe and throttle valve actuator (M16/6).
2.2	Remove charge air cooler.	Engine 260 in model 118, 177, 247 with code M016 (Uprated engine)
			AR09.41-P-0105MFC
3	Release, disconnect electrical connector (7) at throttle valve actuator (M16/6) and unclip at throttle valve actuator (M16/6).
4	Remove bolts (17) and remove throttle valve actuator (M16/6).	Replace seal.
		Bolt, throttle valve actuator to charge air distributor	*BA30.20-P-1002-01C
5	Seal openings with clean, lint-free rags.
6	Install in the reverse order.
	Check
7	Read out and delete fault memory.
			AD00.00-P-2000-06MFA
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
8	Perform engine test run. While doing so, check engine for proper operation and leak tightness
9	Install upper engine cover.
			AP01.10-P-2405-01C
